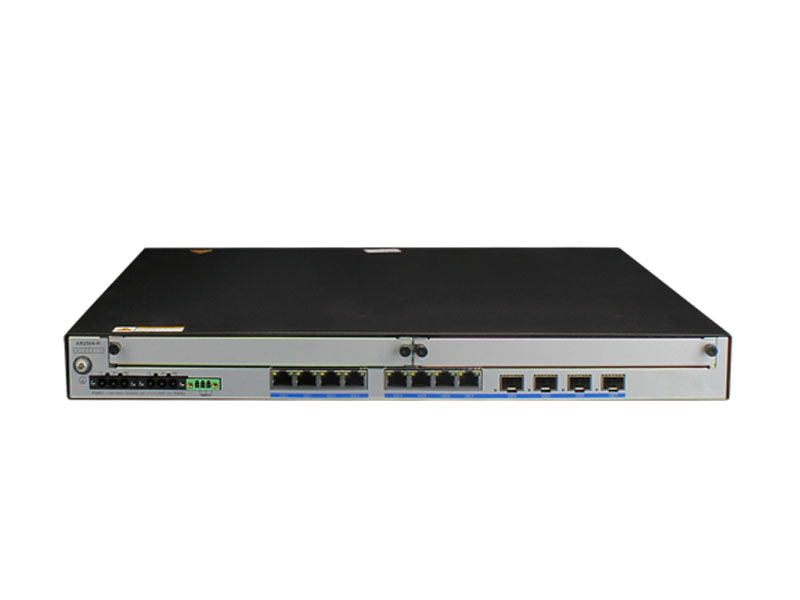

Huawei AR2500 Series AR2504-H

 The AR2500 series agile gateway is designed to work in challenging environments such as extreme temperatures, high humidity, and electromagnetic interference. The AR2500 uses the modular design and supports various types of communication interfaces such as Ethernet and serial interfaces to provide flexible networking modes.

The AR2500 provides the following functions:

• Line-rate switching at Layer 2 and Layer 3
• Layer 2 functions such as VLAN, STP/MSTP, and SEP, and Layer 3 functions such as static and dynamic unicast routing, and multicast routing
• Integration of firewall, NAT, and IPSec VPN to meet increasingly complex service requirements of industrial networks

The AR2500 can be used in a wide range of industries, such as Smart Grid and intelligent transportation.

• Fixed interfaces: 4 x GE combo, 4 x GE RJ45, 1 x USB 2.0, and 1 x DO
• Slots: 2 x WSIC
• Operating temperatures: –40°C to 65°C
• Dimensions (W x D x H): 442 mm x 420 mm x 44 mm
• Redundant power module: 100V AC to 240V AC or 110V DC to 250V DC
