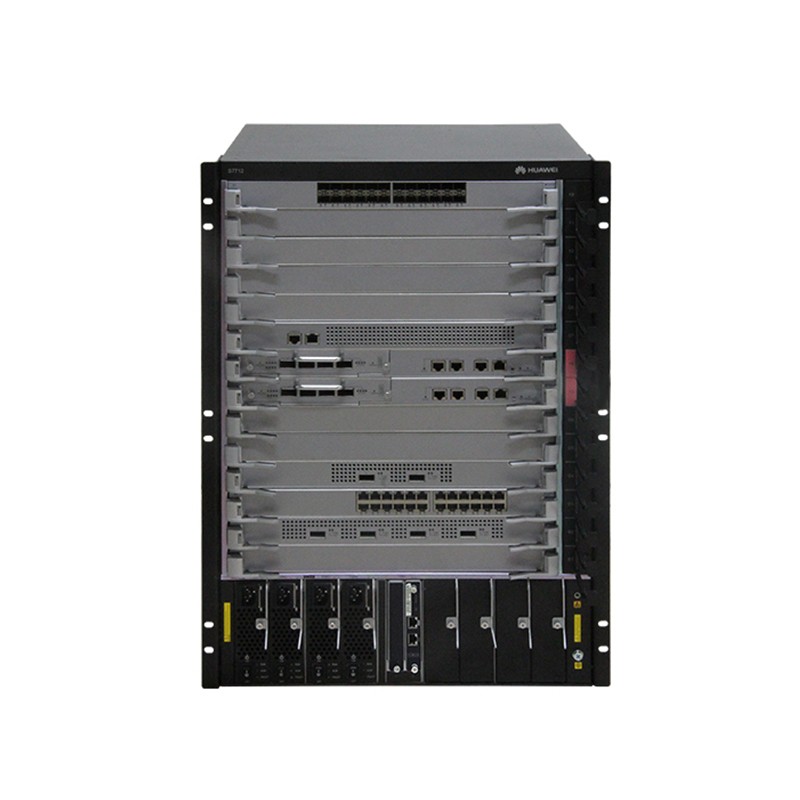

ES0Z1B12ACS0

Product Code

ES0Z1B12ACS0

Switching Capacity

3.84 Tbit/s

Forwarding Performance

2,880 Mpps

Redundancy Design

Supervisors, Power modules, CMUs, Fans trays

Wireless Management

Native AC, wired and wireless convergence

AP access control, AP region management, and AP profile management

Radio profile management, unified static configuration, and centralized dynamic management

Basic WLAN services, QoS, security, and user management

AC deployment on different network layers

User Management

Unified management of wired and wireless users

802.1x, MAC, and portal authentications

Charging based on traffic volume, online duration, and destination addresses (DAA mode)

User authorization based on user groups, domains, and time ranges

iPCA

Adds marks on service packets in order to measure the number of lost packets and packet loss ratios in real time with zero payload

Measures the number of lost packets and packet loss ratios at the network and device levels on Layer 2 and Layer 3 networks

SVF 2.0

256 clients (access switches) and 4,096 APS virtualized into a single device

2-level AS structure

Unified management on Huawei and non-Huawei devices

Routing

IPv4 static routes, RIP, OSPF, IS-IS, and BGP4

IPv6 static routes, RIPng, OSPFv3, IS-ISv6, and BGP4+

IPv4/IPv6 equal-cost routes, policy routing, route policy

IPv4 and IPv6 stack

Pingv6, Telnetv6, FTPv6, TFTPv6, DNSv6, and ICMPv6

IPv4-to-IPv6 transition technologies, such as IPv6 manual tunnel, 6 to 4 tunnel, ISATAP tunnel, GRE tunnel, and IPv4-compatible automatic tunnel

Virtualization

CSS horizontal virtualization

SVF 2.0 vertical virtualization

Buffer Capacity

200 ms per Po rt

Pack Weight
 (kg)

56.1

Pack Volume
 (m^3)

0.322

Pack Dimension
 (D*W*H mm)

810*650*610

Net Dimension
 (D*W*H mm)

489*442*664
