ES0B00770300

  • Model:

    ES0B00770300 Huawei S7700 Series switch
  • Detail:

    S7703 Assembly Chassis
  • Price:

    $350.00

  • Condition:

    Brand New Sealed
  • Availability:

    IN STOCK

  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Overview

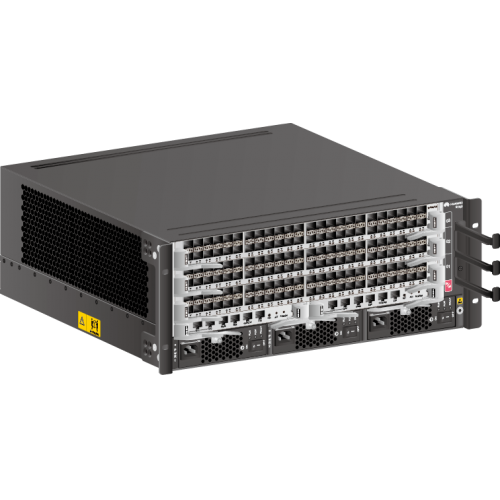

S7703 Assembly Chassis



Overview (ES0B00770300)

ES0B00770300 is the Huawei S7703 Assembly Chassis. The S7700 series switches (S7700 for short) are high-end smart routing switches designed for next-generation enterprise networks. The S7700 design is based on Huawei’s intelligent multi-layer switching technology to provide intelligent service optimization methods, such as MPLS VPN, traffic analysis, comprehensive HQoS policies, controllable multicast, load balancing, and security, in addition to high-performance Layer 2 to Layer 4 switching services. The S7700 also features super scalability and reliability.



Product Code

ES0B00770300

Forwarding Performance

1,440 Mpps

Switching Capacity

1.92 Tbit/s

Service Slots

3

Redundancy Design

Supervisors, Power modules, CMUs, Fans trays

MPU Slots

2

LPU slots

3

System power supply slots

2

Fan slots

1

PoE power supply slots

1

Maximum PoE Power

2,200W

Maximum power consumption (fully loaded)

1000 W

Working Voltage

DC: –38.4V to –72V

AC: 90V to 290V

Dimensions (W x D x H, excluding rack-mounting brackets)

With cable management frames: 442 mm x 585 mm x 175 mm (17.4 in. x 23.0 in. x 6.9 in. (4 U))

Without cable management frames: 442 mm x 489 mm x 175 mm (17.4 in. x 19.3 in. x 6.9 in. (4 U))

Weight (empty/fully loaded)

10 kg/22 kg (22.0 lb/48.5 lb)
