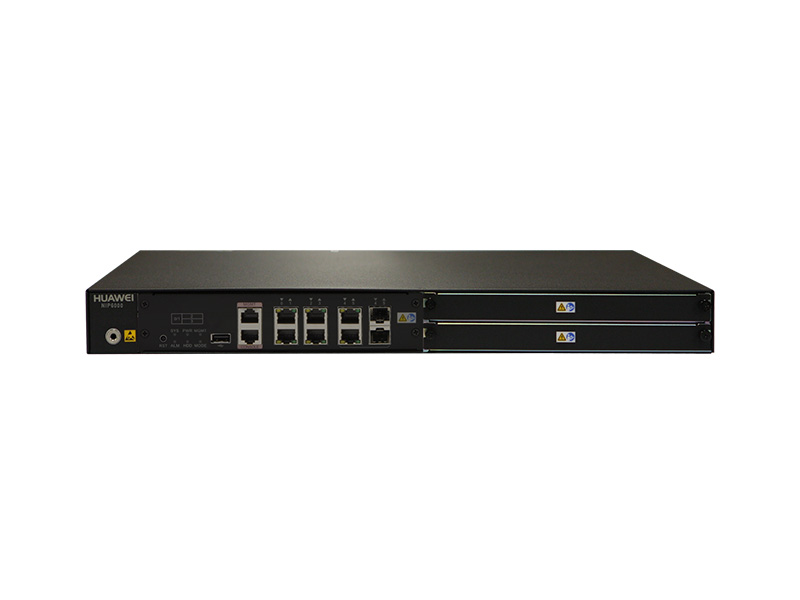

Huawei NIP6610 Prevention Systems

  • Model:

    Huawei NIP6610 Prevention Systems
  • Detail:

    Huawei NIP6000 series Intrusion Prevention Systems
  • Price:


  • Condition:

    Brand New Sealed
  • Availability:


  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Huawei NIP6000 series Intrusion Prevention Systems


Product specifications

Model NIP6610 NIP6330 NIP6620 NIP6650 NIP6680 NIP6860
Performance Mid-range FE Low-end Gigabit Mid-range Gigabit High-end Gigabit Mid-range 10 Gigabit High-end 200 Gigabit
IPS Throughput 600 Mbit/s 1.0 Gbit/s 2.0 Gbit/s 6.0 Gbit/s 15.0 Gbit/s Maximum 200 Gbit/s
Fixed Ports 4 GE + 2 Combo 8 GE + 4 SFP 8 GE + 4 SFP 8 GE + 4 SFP 4 x 10 GE +1 6 GE + 8 SFP None
Support 24 x GE, 6 x 10 GE, 12 x 10 GE, 3 x 40 GE, 1 x 100 GE
Height 1U 3U 14U
Dimensions 442 mm x 421 mm x 43.6 mm 442 mm x 415 mm x 130.5 mm 442 mm x 650 mm x 620 mm
Weight 10 kg 24 kg Empty: 43.2 kg
Full: 112.9 kg
Hard Disk Optional: Supports one 300 GB hard disk (hot-swappable). Optional: Supports one 300 GB hard disk (RAID1 and hot-swappable) None
Redundant Power Supply Optional Standard
AC Power Supply 100V to 240V 90V to 264V
DC Power Supply - -48V to -60V -72V to -38V
Power Consumption 170W 350W DC typical: 4,025W
DC max: 4,823W
AC typical: 4,282W
AC max: 5,132W
Operating Environment • Temperature
0°C to 45°C (without optional hard disk)
5°C to 40°C (with optional hard disk)
• Humidity
10% to 90%
• Temperature
0°C to 45°C
• Humidity
5% to 85%
Intelligent Management Detects the types, operating systems, and enabled services of protected IT assets and dynamically generates suitable intrusion prevention policies for the IT environment
Evaluates the risk level of attack events based on the IT environment so that administrators can process critical attack events and ignore false positive attacks
Identifies application types of live network traffic and determines whether to implement intrusion detection based on the risk levels of the identified application types
Provides multiple types of logs, such as threat logs, operation logs, system logs, and policy matching logs, for the administrator to learn about network events

Provides multiple types of reports, such as traffic reports, threat reports, and policy matching reports, for the administrator to view network traffic and threat status. The NIP can also interwork with an eSight to provide more comprehensive and diversified reports

Provides a web UI, CLI (console, Telnet, and sTelnet), and network management system (SNMP) for device management
Intrusion Prevention Defends against common attacks, such as Worms, Trojan horses, botnets, cross-site scripting, and SQL injection, based on the signature database, and provides user-defined signatures to defend against new attacks
APT Detection Detects APT attacks based on reputation systems and the sandbox. The NIP6300/NIP6600 sends suspect files to the sandbox for detection and then displays attack events based on the sandbox detection result
Supports IP and C&C reputation to detect and prevent malicious IP addresses and domain names
Application Security Automatically learns traffic patterns and defends against multiple types of DDoS attacks at the application layer, including HTTP, HTTPS, DNS, and SIP flood attacks
Scans for viruses in files transmitted through HTTP, FTP, SMTP, POP3, IMAP, NFS, and SMB and prevents virus-infected files from being transmitted
Identifies more than 6,000 applications, including P2P, IM, online gaming, social networking, video, and audio applications, and takes actions (block, traffic limiting, application usage display) for the identified applications
Web Security Decrypts HTTPS traffic and detects threats
Provides a URL blacklist to control online behavior
Network Security

Detects threats in IPv6 traffic

Detects threats in VLAN, QinQ, MPLS, GRE, IPv4 over IPv6, and IPv6 over IPv4 tunnel traffic
Automatically learns traffic patterns and defends against multiple types of DDoS attacks at the network layer, including SYN, UDP, ICMP, and ARP flood attacks

Defends against multiple types of single-packet attacks, including:

  • Scanning attacks, such as IP sweep and port scanning
  • Malformed packet attacks, such as IP spoofing, LAND, Smurf, Fraggle, WinNuke, Ping of Death, TearDrop, IP fragment, ARP spoofing, and attacks using invalid TCP flags
Control message attacks, such as oversized ICMP packets, ICMP unreachable packets, ICMP redirect packets, Tracert, packets with options such as IP source routing, IP record route, and IP timestamp
Blacklists the source or destination IP addresses of attacks to block the follow-up packets from or to the blacklisted IP addresses
High Availability Supports hot backup protocols, such as VRRP, VGMP, and HRP, and provides a hot standby mechanism to ensure that services can automatically and smoothly switch to the standby device if the active device fails
Provides a bypass card to ensure service continuity if the system encounters faults (such as hardware failures, and devices being powered off)
Provides visualized fault diagnosis for the administrator to diagnose all possible fault causes and automatically displays the diagnosis results and troubleshooting suggestions
Signature Database Update Supports online and offline updates of the IPS-SDB, SA_SDB, and antivirus SDB for the device to have the latest defense capabilities
