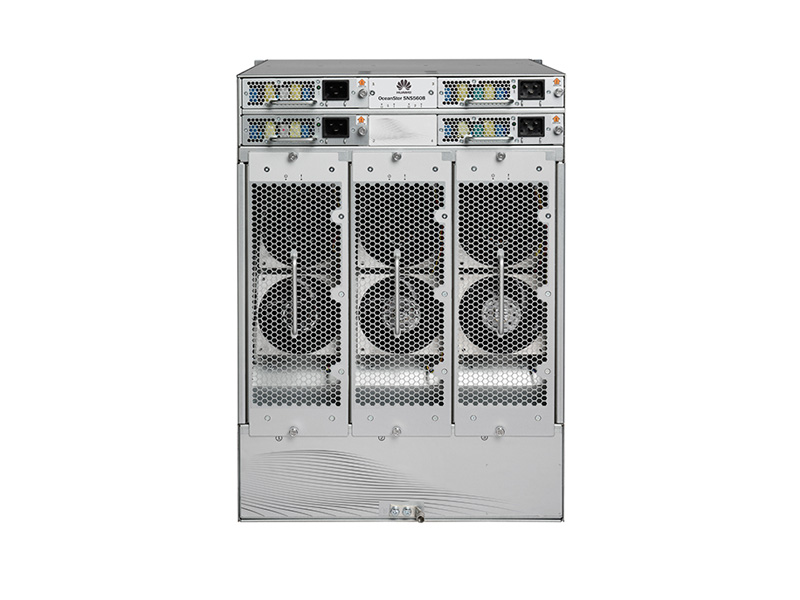

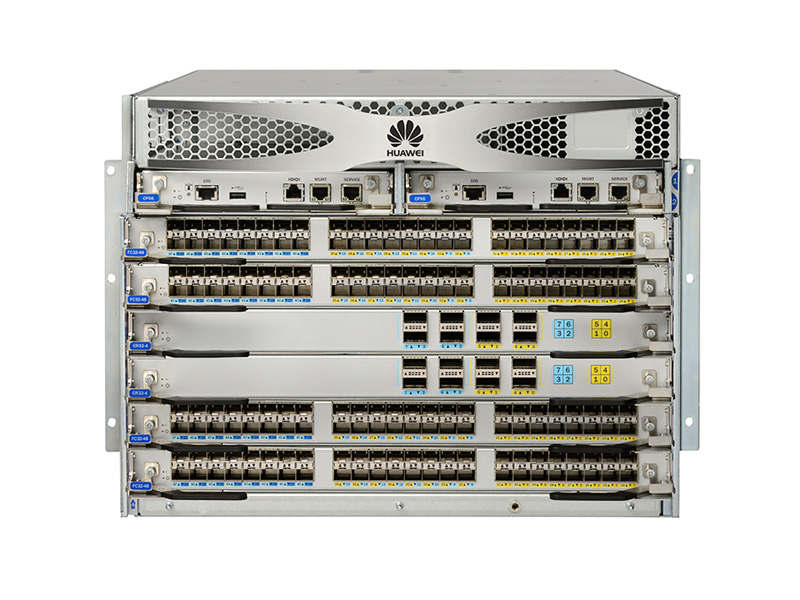

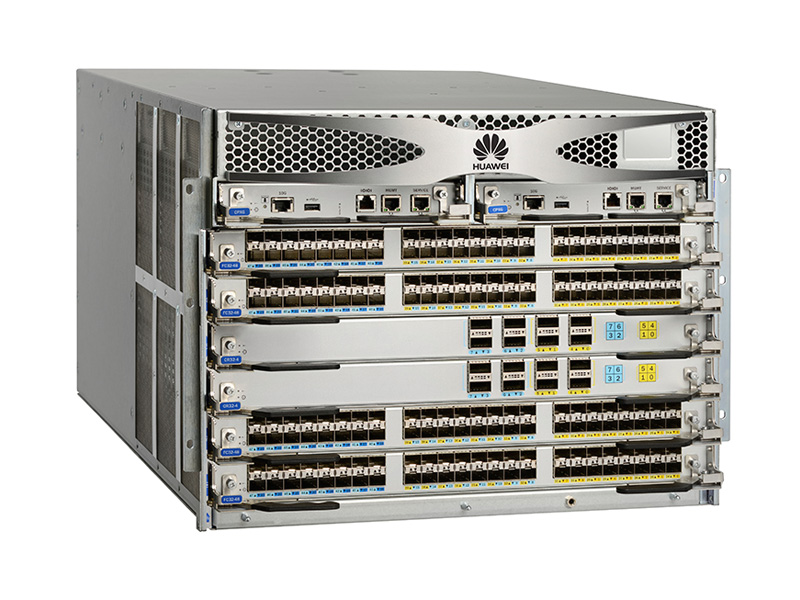

Huawei OceanStor SNS5608 Directors

  • Model:

    Huawei OceanStor SNS5608 Directors
  • Detail:

    Enhance operational stability, maximize application performance, and increase business agility with enterprise-class Gen 6 directors which accelerate application response time by up to 71% Provide “pay-as-you-grow” flexibility and Ports-on-Demand (PoD) capabilities for port expansion with a port rate up to 32 Gbit/s Simplify end-to-end management of large-scale environments by automating monitoring and diagnostics, for simpler, flatter, low-latency fabrics
  • Price:

    $3000.00

  • Condition:

    Brand New Sealed
  • Availability:

    IN STOCK

  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Overview
Enhance operational stability, maximize application performance, and increase business agility with enterprise-class Gen 6 directors which accelerate application response time by up to 71% Provide “pay-as-you-grow” flexibility and Ports-on-Demand (PoD) capabilities for port expansion with a port rate up to 32 Gbit/s Simplify end-to-end management of large-scale environments by automating monitoring and diagnostics, for simpler, flatter, low-latency fabrics



Specifications

Model

SNS5604

SNS5608

Number of Ports

Up to 192 x 32 Gbit/s ports or a 256-port equivalent with 16 UltraScale ICL ports

Up to 384 x 32 Gbit/s ports or a 512-port equivalent with 128 Gbit/s (4 x 32 Gbit/s) UltraScale ICL ports (32 Gbit/s x 4 QSFP ports)

Port Types

FC32-48 port blade: F Port, E Port, EX Port, M Port, SIM, and D Port

SX6 Extension Blade: F Port, E Port, and EX Port on FC, and VE Port on GbE

Fiber Channel Blades

FC32-48 port blade provides 48 ports of 32 Gbit/s Gen 6 Fiber Channel

Extension Blades

SX6 Extension Blade provides Fiber Channel extension (16 x 32 Gbit/s Fiber Channel ports) and IP extension over IP networks (16 x 1/10 GbE and 2 x 40 GbE ports)

Scalability

Full-fabric architecture of 239 switches

Chassis Bandwidth

6.1 Tbit/s per chassis (192 ports x 32 Gbit/s) data rate + 2.048 Tbit/s UltraScale ICL bandwidth (16 x 128 Gbit/s)

12.2 Tbit/s per chassis (384 ports x 32 Gbit/s) data rate + 4.096 Tbit/s UltraScale ICL bandwidth (32 x 128 Gbit/s)

Slot Bandwidth

1,536 Gbit/s (line rate)

Switch Latency

FC32-48 blade at Gen 6 32 Gbit/s speeds: < 900 ns (including FEC); any-port-to-any-port local switching and 2.7 μs blade to blade at 32 Gbit/s, cut-through routing

SX6 blade, Fiber Channel to Fiber Channel: < 900 ns (including FEC) and 2.7 μs any-port-to-any-port at 32 Gbit/s, cut-through routing

Maximum Frame Size

2,112-byte payload

Frame Buffers

15,360 per switching ASIC
