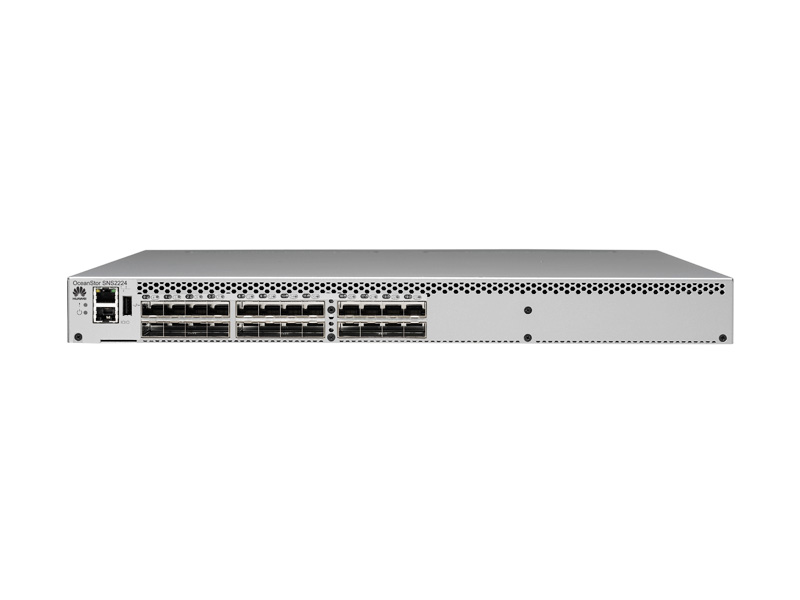

Huawei OceanStor SNS2224 switches

Model:
Huawei OceanStor SNS2224switches

Detail:
The SNS series of OceanStor Fiber Channel switches is a cost-effective choice for network expansion ISL link aggregation: Frame-based link aggregation combines multiple ISL links into one logical link for efficient bandwidth use and load balancing Port automatic-sensing: The SNS2124 automatically adapts from 1 Gbit/s to 8 Gbit/s. The SNS2224 and SNS2248 automatically adapt from 2 Gbit/s to 16 Gbit/s. Provide SFP backward compatibility with on-demand investment availability

Price:

$2000.00

Buy Now Inquire Now

Free Technical Support
Product Quality Protection
On-time Shipment

+86 755 8215 3862
leo@uonel.com
ywx39894

Product Overview Reviews

Overview

The SNS series of OceanStor Fiber Channel switches is a cost-effective choice for network expansion ISL link aggregation: Frame-based link aggregation combines multiple ISL links into one logical link for efficient bandwidth use and load balancing Port automatic-sensing: The SNS2124 automatically adapts from 1 Gbit/s to 8 Gbit/s. The SNS2224 and SNS2248 automatically adapt from 2 Gbit/s to 16 Gbit/s. Provide SFP backward compatibility with on-demand investment availability

Specifications

Specifications	SNS2124	SNS2224	SNS2248
Number of Ports	A maximum of 24 ports, where 8, 16, and 24 general-purpose ports can be configured in increments of 8	A maximum of 24 ports, where 12 and 24 general-purpose ports can be configured in increments of 12	A maximum of 48 ports, where 24, 36, and 48 general-purpose ports can be configured in increments of 12
Port Types	FL_Port, F_Port, M_Port, E_Port, U_Port, and N_Port	D_Port, E_Port, F_Port, M_Port, and U_Port	D_Port, E_Port, EX_Port, F_Port, M_Port, and U_Port
Port Rate	1, 2, 4, 8 Gbit/s	2, 4, 8, 16 Gbit/s
Maximum Latency	Local switching port: 700 ns
Total Bandwidth	192 Gbit/s: 24 ports x 8 Gbit/s Or 384 Gbit/s: 24 ports x 8 Gbit/s x 2 (full duplex)	384 Gbit/s: 24 ports x 16 Gbit/s Or 768 Gbit/s: 24 ports x 16 Gbit/s x 2 (full duplex)	768 Gbit/s: 48 ports x 16 Gbit/s Or 1536 Gbit/s: 48 ports x 16 Gbit/s x 2 (full duplex)
Media Type	SFP, SFP+, LC connector, SWL, LWL, and ELWL	SFP+, LC connector, SWL, LWL, and ELWL
Maximum Frame Size	2,112 byte payload
Frame Buffer	700 frames dynamically assigned; a maximum of 484 frames per port	8,192 frames dynamically assigned
Scalability	Full fabric architecture with a maximum of 239 switches
