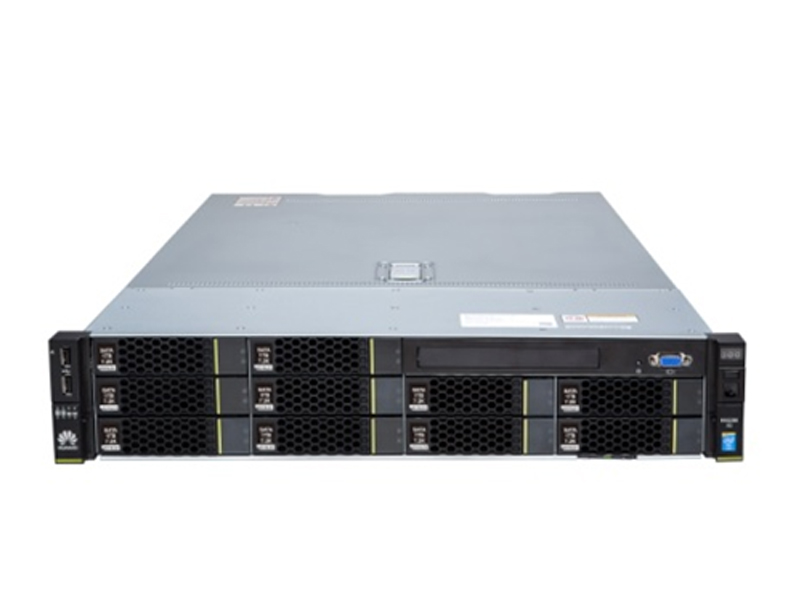

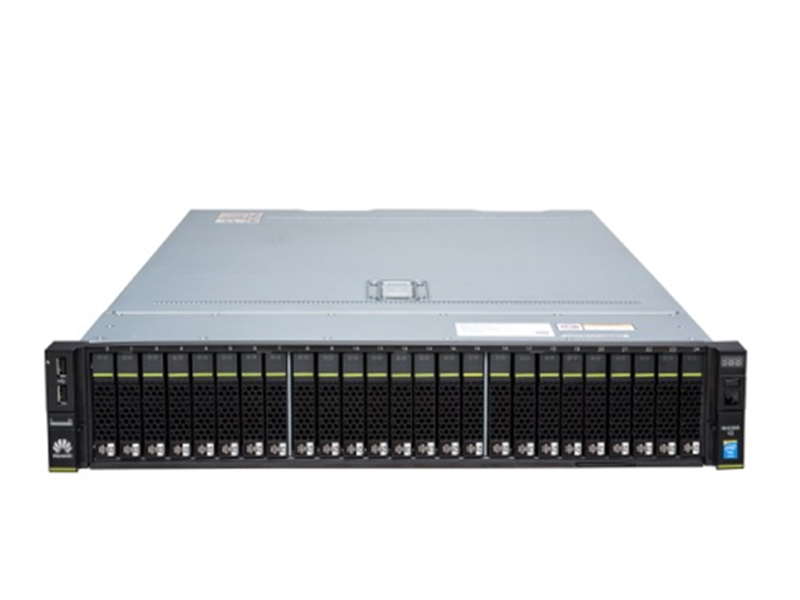

Huawei RH2288 V3 Rack Server

  • Model:

    Huawei RH2288 V3 Rack Server
  • Detail:

    Huawei’s FusionServer RH2288 V3 is a next-generation 2U, 2-socket rack server. Leveraging the advantages of an efficient design, the RH2288 V3 unleashes superb computing performance, and offers flexible, large-capacity local storage expansion. The RH2288 V3 is an ideal choice for Internet, Big Data, file service, cloud computing, and telecom service applications. FusionServer RH2288 V3 perfectly balances performance and density in a 2U space.
  • Price:

    $3000.00

  • Condition:

    Brand New Sealed
  • Availability:

    IN STOCK

  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Overview
Huawei’s FusionServer RH2288 V3 is a next-generation 2U, 2-socket rack server. Leveraging the advantages of an efficient design, the RH2288 V3 unleashes superb computing performance, and offers flexible, large-capacity local storage expansion. The RH2288 V3 is an ideal choice for Internet, Big Data, file service, cloud computing, and telecom service applications. FusionServer RH2288 V3 perfectly balances performance and density in a 2U space.



Specifications

Processor

Intel® Xeon® E5-2600 v3/v4 series processors

Memory

16 DDR4 RDIMMs/LRDIMMs

Internal Storage

Supports the following hard disk configurations:



• Eight front 2.5-inch SSDs or SAS or SATA HDDs



• Twelve front 3.5-inch SAS or SATA HDDs and two or four rear 2.5-inch or 3.5-inch SSDs or SAS or SATA HDDs



• Twelve front 3.5-inch SAS or SATA HDDs (NVMe model supports four NVMe SSD disks) and two rear 2.5-inch or 3.5-inch SSDs or SAS or SATA HDDs



• Twenty-four front 2.5-inch SAS or SATA HDDs



• Twenty-five front 2.5-inch SSDs or SAS or SATA HDDs and two or three rear 2.5-inch SSDs or SAS or SATA HDDs





Supports built-in Flash:



• Two SD cards

RAID



  • RAID 0, 1, 10, 5, 50, 6, or 60
  • Configured with a supercapacitor for power-off protection for the cache (optional)
  • RAID state transition, configuration memory, self-diagnosis, and web-based remote configuration

LOM Network Ports

2 GE or 4 GE ports, or 2 x 10 GE ports, or 2 x 56 Gbit/s FDR InfiniBand ports

PCIe Expansion

Up to 6 PCIe 3.0 slots

Fan Modules

Hot-swappable fan modules in N+1 redundancy mode

Power Supply Units

2 hot-swappable PSUs in 1+1 redundancy mode

Management

  • Uses the Huawei Hi1710 management chip and independent ports
  • Supports standard management interfaces, such as SNMP and IPMI; provides GUI, remote KVM, virtual media, SOL, Predictive Failure Analysis (PFA), intelligent power supply, remote control, and hardware monitoring
  • Supports Huawei eSight management software and integration with third-party management systems, such as VMware vCenter, Microsoft System Center, and Nagios

Operating Temperature

5°C to 45°C (41°F to 113°F), ASHRAE Class A3 and A4 compliant
