Huawei XH620 V3 Server Node

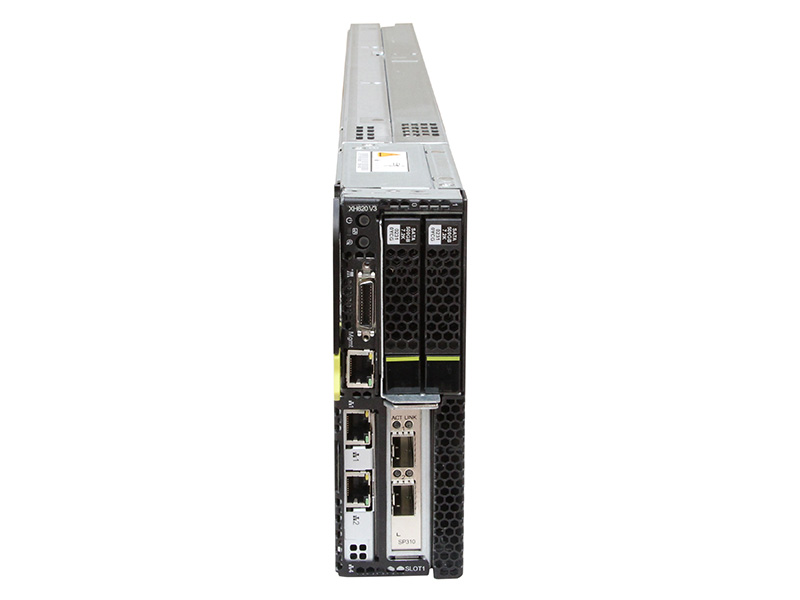

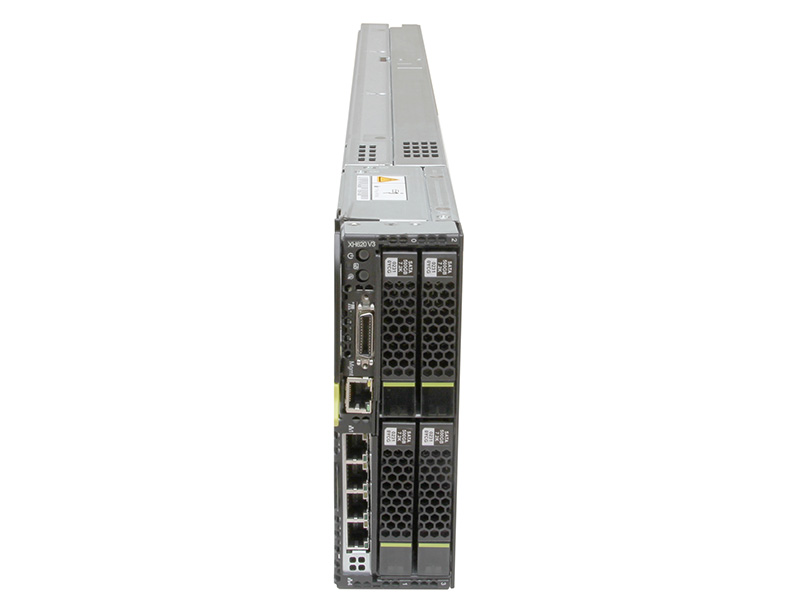

Huawei FusionServer XH620 V3 Server Node (XH620 V3 for short) is a full-height dual-socket server node occupying one slot in an X6800 server. It uses Intel® Xeon® E5-2600 v3/v4 series processors and supports 16 DDR4 low-voltage DIMMs. The XH620 V3 is suitable for applications that require high-density computing servers, such as web access, hosting, and virtualization. Improve energy efficiency while saving space.



Provides high density, leading performance, and flexible configuration

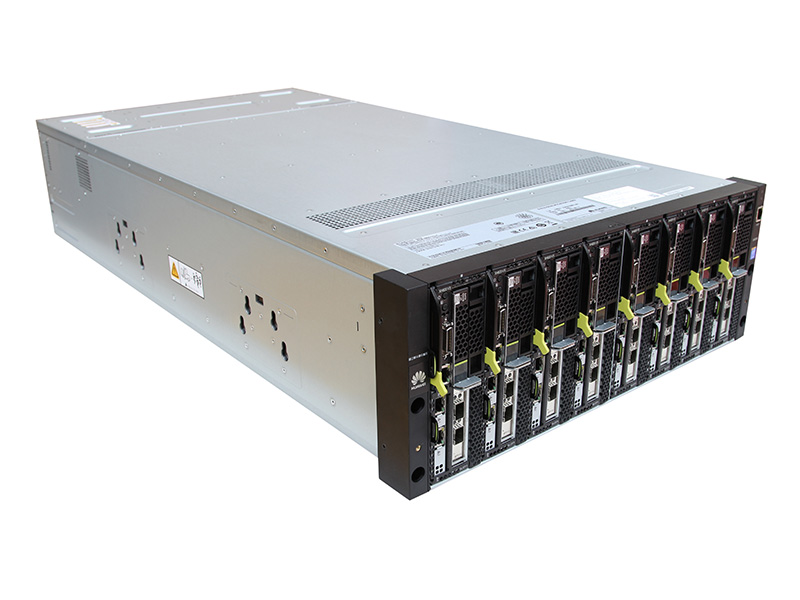

• Eight XH620 V3 server nodes can be deployed in a 4U space, saving up to 50% equipment footprint compared with 1U rack servers
• Each XH620 V3 supports up to two Intel® Xeon® E5-2600 v3/v4 series processors that support a maximum frequency of 3.5 GHz and a maximum L3 cache capacity of 55 MB, providing excellent computing performance
• A 4U chassis can hold eight XH620 V3 server nodes that support up to 352 CPU cores and 704 threads. Each XH620 V3 supports Intel’s hyper-threading technology, boosting performance for multi-threaded applications
• Each XH620 V3 supports 16 DDR4 DIMMs and supports the memory bandwidth of up to 153.6 Gbit/s, providing excellent data processing speed

• Specifications

  Form Factor	Full-height, dual-socket server node occupying one slot
  Number of Processors	1 or 2
  Processor	Intel® Xeon® E5-2600 v3/v4 processor
  Memory	16 DDR4 DIMM slots
  Local Storage	Four or two 2.5-inch SSDs or SAS/SATA HDDs or two 3.5-inch SAS/SATA HDDs Two mini-SSDs (SATA DOMs) One USB flash drive
  LOM Network Ports	2 x GE, 4 x GE, 2 x 10 GE, 2 x GE + 2 x 10 GE, 2 x 10G Base-T or 2 x 56G IB
  PCIe Expansion	Up to 3 PCIe slots
  OSs Supported	Citrix XenServer Microsoft Windows Server Oracle Enterprise Linux Oracle Server VM Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi
  Operating Temperature*	5ºC to 40ºC (41ºF to 104ºF), ASHRAE Class A3 compliant
  Certifications	CE, UL, FCC, and RoHS
  Dimensions (H x W x D)	166 mm x 54 mm x 670 mm
