ZTE Switch ZXR10 8900 Series
-
Model:
ZTE Switch ZXR10 8900 Series -
Detail:
ZTE Switch ZXR10 8900 Series Terabit MPLS Routing Switch RS-8902 RS-8905 RS-8908 RS-8912 -
Price:
$2000.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
Share:
Overview

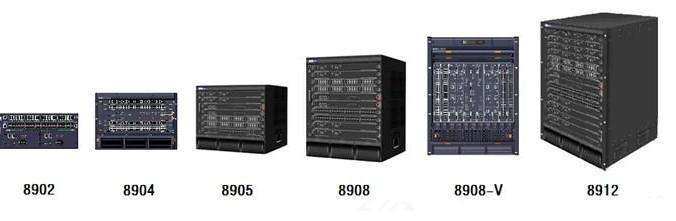

ZTE Switch ZXR10 8900 Series Terabit MPLS Routing Switch RS-8902 RS-8905 RS-8908 RS-8912
ZTE RS-89S2-24GE2XGE-SFP4RJXFP, 24-port GE/FE optical interface + 2-port 10GE optical interface card for ZTE ZXR10 8900 RS-8902 RS-8905 RS-8908 RS-8912
ZTE Switch ZXR10 8900 Series Terabit MPLS Routing Switch RS-8902 RS-8905 RS-8908 RS-8912
|
Functions and Parameters
|
8912
|
8908
|
8905
|
8902
|
||||
|
Basic Parameters
|
Number of Slots
|
14
|
10
|
7
|
4
|
|||
|
Number of line card Slots
|
12
|
8
|
5
|
2
|
||||
|
Backplane Capacity
|
5.76Tbps
|
3.84Tbps
|
2.4Tbps
|
960Gbps
|
||||
|
Switching Capacity
|
1152Gbps
|
768Gbps
|
480Gbps
|
192Gbps
|
||||
|
Packet Forwarding Rate
|
857Mpps
|
571Mpps
|
357Mpps
|
143Mpps
|
||||
|
Route table depth
|
384K
|
|||||||
|
MAC table depth
|
512K
|
|||||||
|
Features
|
L2 Features
|
IEEE 802.1q VLAN,IEEE 802.1p,IEEE 802.3ad, STP,RSTP,MSTP, Selective QinQ, VLAN translation, PVLAN, DHCP Snooping
|
||||||
|
L3 Features
|
VRRP, Super VLAN, DHCP-Server/Relay, Static routing, RIP,OSPF,IS-IS, BGP, Policy based routing, MCE
|
|||||||
|
MPLS/MPLS VPN
|
LDP,MPLS TE,VPLS,VPWS,H-VPLS,MPLS L3 VPN
|
|||||||
|
Multicast
|
Administratively scoped multicast/IPTV,MVR,IGMP Snooping, Filtering, Proxy and Fast Leave, IGMP,PIM-DM/SM,PIM-SSM,DVMRP,MSDP
|
|||||||
|
QOS
|
Marking, modification of Qos priority and mapping between 802.1p,IP DSCP,MPLS EXP. 8 hardware-based queues per port, SP, WRR,SP+WRR queue scheduling mechanisms, Policing/shaping based on port/flow, support various Congestion avoidance mechanisms
|
|||||||
|
Security
|
CPU anti-attack, CPU overload protection, Broadcast/Multicast/unknown Unicast suppression, STP Root Guard, BPDU guard, uRPF, RIP/OSPF/BGP MD5 encryption checking, IP source Guard, DAI
|
|||||||
|
Reliability
|
Redundant Control module/Power supply/Fan module, LACP ,ZESS ,ZESR/ZESR+,VRRP, FRR,NSF,BFD
|
|||||||
|
Enhanced Features
|
802.1ag,802.3ah
|
|||||||
|
Equipment management
|
Equipment management
|
RS232 Console(RJ45),Ethernet management port, CLI, Telnet, SSH, Local and remote(Radius/Tacacs+)authentication of user, SNMP, MIB, NetNumen U31, Cluster Management(ZGMP) ,RMON, Syslog, Fast in-batch inspection tool
|
||||||
|
Interface module
|
Interface module
|
44 ports 100M (SFP)+4 ports 100M/1000M (SFP)
48 ports 100M (RJ45) 20 ports 1000M (RJ45)+4 ports 1000M (Combo) 20 ports 100M/1000M (SFP)+4 ports 100M/1000M (Combo) 48 ports 1000M (RJ45) 48 ports 100M/1000M (SFP) 20 ports 100M/1000M (SFP)+4 ports 100M/1000M (Combo)+ 2 ports 10GE (SFP+) 20 ports 100M/1000M (RJ45)+4 ports 100M/1000M (Combo)+ 2 ports 10GE (SFP+) 12 ports 1000M (SFP)+12 ports 1000M SFP/RJ45 + 2 ports 10GE (SFP+) 2 ports 10GE (SFP+) 4 ports 10GE (SFP+) |
||||||
|
Physical Parameters
|
Height
|
17RU
|
13RU
|
10RU
|
4RU
|
|||
|
Dimensions
(H*W*D)
|
755mm*442mm
*450mm
|
577mm*442mm
*450mm
|
440mm*442mm
*450mm
|
175mm*442mm
*450mm
|
||||
|
Maximum Weight
|
84.3kg
|
65.8kg
|
49.3kg
|
21.3kg
|
||||
|
DC power supply
|
-48V
|
|||||||
|
AC power supply
|
100V~240V,50Hz~60Hz
|
|||||||
|
Maximum power consumption
|
1635W
|
1077W
|
701W
|
293W
|
||||
|
Power redundancy pattern
|
AC: 2+1; DC: 1+1
|
AC: 1+1; DC: 1+1
|
||||||
|
Heat dissipation pattern
|
Fan cooling
|
|||||||
|
Heat dissipation
|
4574 BTU/h
|
3013 BTU/h
|
1961 BTU/h
|
820 BTU/h
|
||||
|
Working environment temperature, humidity
|
Long term working temperature:0oC~+45oC ,Short term working temperature:-10oC ~+55oC
Humidity:10%~90% (non-condensing) |
|||||||
|
Working altitude
|
<3000 meters
|
|||||||
|
MTBF/MTTR
|
> 200000 hours/ <30 minutes
|
|||||||
