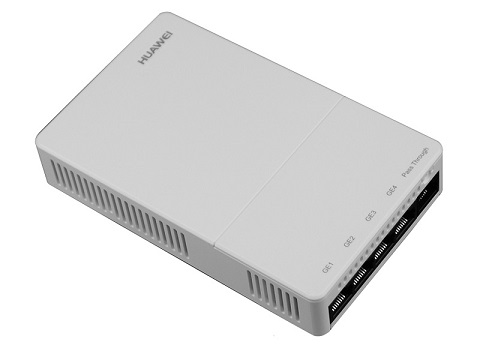

Huawei AP2050DN Access

  • Model:

    Huawei AP2050DN Access
  • Detail:

    Huawei AP2050DN is the latest-generation gigabit wall plate Access Point (AP) that complies with 802.11ac Wave 2, 2 x 2 MIMO and two spatial streams. It is applicable to environments densely populated with small rooms, such as hotels, student dormitories, hospitals, and offices.
  • Price:

    $177.00

  • Condition:

    Brand New Sealed
  • Availability:

    IN STOCK

  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Overview
Huawei AP2050DN is the latest-generation gigabit wall plate Access Point (AP) that complies with 802.11ac Wave 2, 2 x 2 MIMO and two spatial streams. It is applicable to environments densely populated with small rooms, such as hotels, student dormitories, hospitals, and offices.

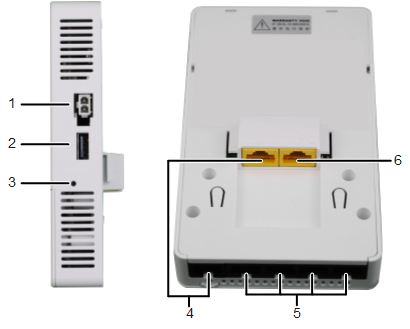

 1. DC 48V: DC power socket: connects a 48V power adapter to the AP

2. USB: Connects to a USB flash drive or other storage devices to extend the storage space of the AP. USB 2.0 standard is supported

3. Default: Reset button; restores factory settings and restarts the device if you hold down the button for more than 3 seconds

4. Pass Through: Connects to a network cable or phone cable for transparent transmission

5. GE1 to GE4: 10M/100M/1,000M port; connects to the wired Ethernet

6. GE0/PoE_IN: 10M/100M/1,000M port; connects to the wired Ethernet and supports PoE input

LED Indicators

Notes: The indicator is located inside the panel, which turns on after the AP is powered on. Indicator colors may vary slightly at different temperatures.

Type Color Status Description
Default Status after Power-on Green Steady on The AP is just powered on and the software is not started yet.
Software Startup Status Green Steady on after blinking once After the system is reset and starts uploading the software, the indicator blinks green once. Until the software is uploaded and started, the indicator remains steady green.
Running Status Green Blinking once every 2 seconds (0.5 Hz)
  • The system is running properly, the Ethernet connection is normal, and STAs are associated with the AP.
  • The system enters the Uboot CLI.
Blinking once every 5 seconds (0.2 Hz) The system is running properly, the Ethernet connection is normal, and no STA is associated with the AP. The system is in low power consumption state.
Alarm Green Blinking once every 0.25 seconds (4 Hz)
  • The software is being upgraded.
  • After the software is uploaded and started, the AP working in Fit AP mode requests to go online on the AC and maintains this state until it goes online successfully on the AC (before the CAPWAP link is established).
  • The AP working in Fit AP mode fails to go online on the AC (the CAPWAP link disconnects).
Fault Red Steady on A fault that affects services has occurred, such as a DRAM detection failure or system software loading failure. The fault cannot be automatically rectified and must be rectified manually
