Huawei AP2010DN Access Point

  • Model:

    Huawei AP2010DN Wall Plate Access Point
  • Detail:

    The Huawei AP2010DN Wall Plate AP offers a convenient access solution for buildings with densely distributed small rooms, such as hotels, apartments, dormitories, hospitals, and offices.
  • Price:

    $360.00

  • Condition:

    Brand New Sealed
  • Availability:

    IN STOCK

  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Overview
The Huawei AP2010DN Wall Plate AP offers a convenient access solution for buildings with densely distributed small rooms, such as hotels, apartments, dormitories, hospitals, and offices.

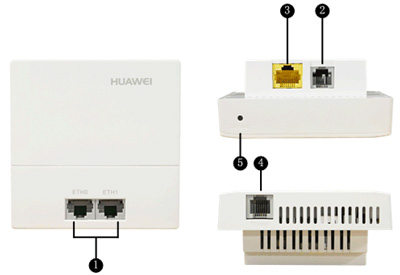

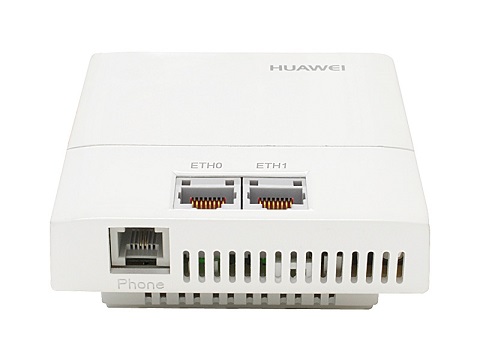

  • ETH0/ETH1: 10/100 Mbit/s interface connects to the wired Ethernet
  • Phone: Phone interface connects to a traditional PSTN
  • GE/PoE: 10/100/1,000 Mbit/s interface connects to the wired Ethernet. It can also connect to a PoE power supply to provide power for APs
  • Phone: Phone interface connects to a POTS phone or modem
  • Default: Reset button, restores factory settings and restarts the AP if you hold the button down more than 3 seconds
  • Type Color Status Description
    Default Status after Power-on Green Steady on AP is just powered on but software has not started
    Software Startup Status Green Blink once then steady on After the system is reset and starts uploading the software, the indicator blinks green once. Until the software is uploaded and started the indicator remains steady green
    Running Status Green Blinks once every 2 seconds (0.5 Hz)

    System is running properly, Ethernet connection is normal, and STAs are associated with the AP

    Blinks once every 5 seconds (0.2 Hz) System is running properly, Ethernet connection is normal, and no STA is associated with the AP. The system is in low-power consumption state
    Alarm Green Blinks once every 0.25 seconds (4 Hz)
    1. The software is being upgraded
    2. After the software is uploaded and started, the AP enters the registration state, but has not registered successfully with the AC
    3. If the registration fails the CAPWAP link is disconnected
    Fault Red Steady on

    A fault, such as a DRAM detection or system software loading failure has occurred. The fault cannot be automatically fixed and must be fixed manually
