Huawei AP6310SN-GN Access Point
-
Model:
Huawei AP6310SN-GN Access Point -
Detail:
Huawei AP6310SN-GN AP is ideal for wide-coverage WLAN scenarios with high signal attenuation, such as hotels and office buildings. -
Price:
$380.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
Share:
Overview
Huawei AP6310SN-GN AP is ideal for wide-coverage WLAN scenarios with high signal attenuation, such as hotels and office buildings.

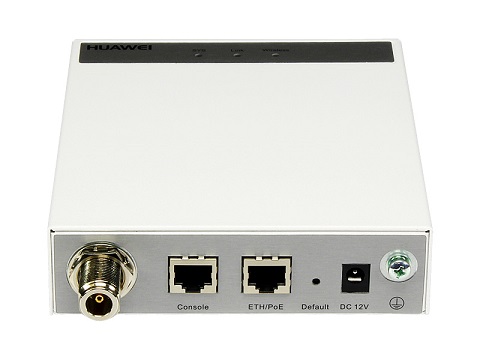

.jpg)
- Console interface
- ETH/PoE interface: 10/100/1,000M interface that connects to the wired Ethernet and supports a PoE power supply
- Default button: Restores factory settings if you hold down the button more than 3 seconds
- Power input: 12V DC.
- Ground point: Connects to a ground cable
- N-type radio connector interface
-
Status SYS Link Wireless Description Startup Steady green — — System being initialized
Blinking green — — Memory check, software system, and system initialization are normal Steady red — — Memory check failed or system software failed to load Running and Connected Blinking green once every 2 seconds (0.5 Hz) Off Off System running properly, but no Ethernet connection available. Radio frequencies disabled. STA is not connected
Off Blinking green System running properly, but no Ethernet connection is available. AP has STAs connected and is transmitting data. Indicator blinks faster the more data that is being transmitted Steady or blinking green Off System running properly and Ethernet connection is normal. Radio frequencies disabled. No STA connected. Indicator blinks faster the more data that is being transmitted
Steady or blinking green Blinking green System running properly and the Ethernet connection is normal. STAs connected and transmitting data. Indicator blinks faster the more data that is being transmitted
