ES1B03SACM0N

  • Model:

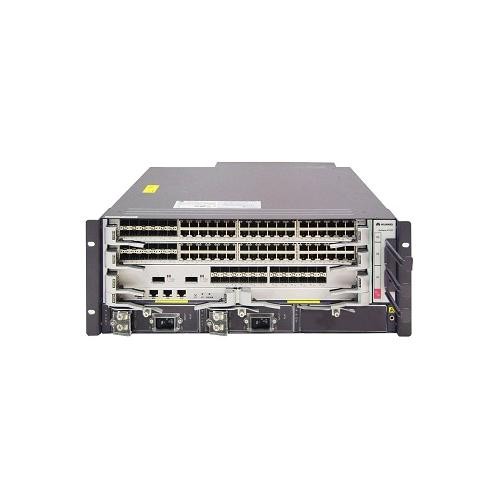

    ES1B03SACM0N Huawei S7700 Series switch
  • Detail:

    S7703 Basic Engine AC Bundle (Including Assembly Chassis,MCUA Main Board*1,800W AC Power*2,48-Port 10/100/1000BASE-T Interface Card(FA,RJ45)*1,2-Port 10GBASE-X Interface Card(EA,XFP)*1)
  • Price:

    $10000.00

  • Condition:

    Brand New Sealed
  • Availability:

    IN STOCK

  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Overview
S7703 Basic Engine AC Bundle (Including Assembly Chassis,MCUA Main Board*1,800W AC Power*2,48-Port 10/100/1000BASE-T Interface Card(FA,RJ45)*1,2-Port 10GBASE-X Interface Card(EA,XFP)*1)



Overview (ES1B03SACM0N)

ES1B03SACM0N is the Huawei S7703 Basic Engine AC Bundle (Including Assembly Chassis, MCUA Main Board*1,800W AC Power*2,48-Port 10/100/1000BASE-T Interface Card(FA,RJ45)*1,2-Port 10GBASE-X Interface Card(EA,XFP)*1).

Product Code

ES1B03SACM0N

Forwarding Performance

1,440 Mpps

Switching Capacity

1.92 Tbit/s

Service Slots

3

Redundancy Design

Supervisors, Power modules, CMUs, Fans trays

MPU Slots

2

LPU slots

3

System power supply slots

2

Fan slots

1

PoE power supply slots

1

Maximum PoE Power

2,200W

Maximum power consumption (fully loaded)

1000 W

Working Voltage

DC: –38.4V to –72V

AC: 90V to 290V

Dimensions (W x D x H, excluding rack-mounting brackets)

With cable management frames: 442 mm x 585 mm x 175 mm (17.4 in. x 23.0 in. x 6.9 in. (4 U))

Without cable management frames: 442 mm x 489 mm x 175 mm (17.4 in. x 19.3 in. x 6.9 in. (4 U))

Weight (empty/fully loaded)

10 kg/22 kg (22.0 lb/48.5 lb)
