ET1BS12712S0
-
Model:
ET1BS12712S0 S12700 Series Switch -
Detail:
S12712 Assembly Chassis, 12 Slots -
Price:
$6000.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
Share:
Overview
S12712 Assembly Chassis, 12 Slots
Overview (ET1BS12712S0)

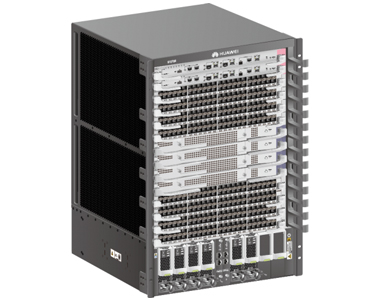

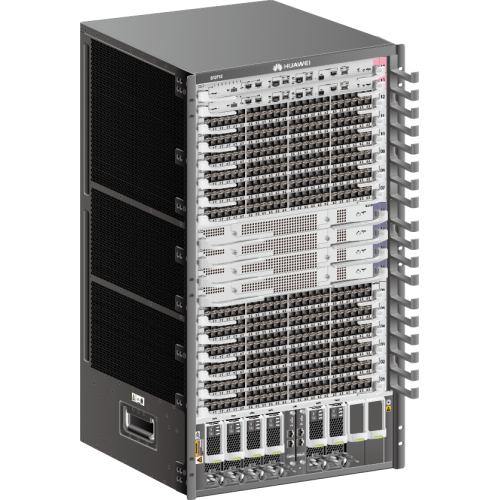

ET1BS12712S0 is the Huawei S12712 Switch assembly chassis, including 12 slots.
|
Product Code |
ET1BS12712S0 |
|
Packet Forwarding Rates |
9,120 Mpps; 12,960 Mpps(With Necessary Plug-ins) |
|
Switching Capacity |
17.44 Tbit/s; 44.96 Tbit/s(With Necessary Plug-ins) |
|
MPU Slots |
2 |
|
SFU Slots |
4 |
|
Service Card Slots |
12 |
|
Energy Saving |
Energy Efficient Ethernet (802.3az) |
|
Redundancy Design |
MPUs, SFUs, power supplies, and fan modules |
|
Maximum Power Consumption of the Entire Equipment |
≤ 6,600W |
|
Dimensions (W x D x H) |
With cable management frames: 442 mm x 585 mm x 841.75 mm (17.4 in. x 23.0 in. x 33.1 in. (19 U)) Without cable management frames: 442 mm x 489 mm x 841.75 mm (17.4 in. x 19.3 in. x 33.1 in. (19 U)) |
|
Weight |
63 kg |
