CW6043700 OptiX OSN 3800

  • Model:

    OSN 3800
  • Detail:

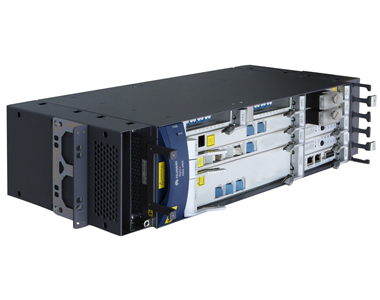

    Huawei OptiX OSN 3800
  • Price:

    Request For Quotation

  • Condition:

    Brand New Sealed
  • Availability:

    IN STOCK

  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Overview
Huawei OptiX OSN 3800



OptiX OSN 3800A V100R010C10 Feature Updates Updates Overview



This topic describes the hardware and software updates in OptiX OSN 3800A V100R010C10 compared with OptiX OSN 3800A V100R010C10.

Feature Updates

Table 1 Enhanced Features
Feature Update Reason for the Update Information Update
Optical Line Protection

The product functions are enhanced.

Compared with 1+1 optical line protection that splits optical signals into two channels, 1:1 optical line protection causes smaller insertion losses because it uses auxiliary light sources to generate optical signals.

Optical Line Protection: 1:1 optical line protection is added.
Fiber Doctor System
  • Fiber quality monitoring can be started in 1:1 optical line protection scenario.
  • Fiber quality monitoring can be started in alarm-triggered mode or periodically mode.
  • The result of fiber quality detection can be export.
  • Introduction: 1:1 optical line protection scenario is added.
  • Triggering Fiber Quality Monitoring by Alarm and Periodically Performing Fiber Quality Monitoring are added.
  • Viewing and Analyzing Detection Results: The method of exporting detection result is added.

Hardware Updates

Table 2 New hardware
Hardware Update Reason for the Update Information Update
TN12RAU1 The TN12RAU1 boards of types 06 and 06E have the same functions and features but 06E newly supports the RFM port that can be connected to an OTDR meter. RAU1
TN12RAU2 The TN12RAU2 boards of types 01 and 01E have the same functions and features but 01E newly supports the RFM port that can be connected to an OTDR meter. RAU2
TN11OLSP The board supports single mode and is applicable to common optical power scenarios. It supports 1:1 optical transmission section (OTS) optical line protection. It can also work together with the FIU board on an optical regeneration site. OLSP
TN11OLSPA/TN11OLSPB

As optical protection boards, OLSPA/OLSPB implements 1:1 optical line protection and applies to IEEE 1588v2 scenarios.

OLSPA/OLSPB

Alarm Updates

Table 3 New Alarms and Performance
Name Description Reference Link
POWER-SAMPLE-DIFF The current optical power of the protection channel is inconsistent with the sampling optical power. POWER-SAMPLE-DIFF
SUBRACK-AMOUNT-EXCEED-CAPACITY Number of slave subracks exceeding threshold. SUBRACK-AMOUNT-EXCEED-CAPACITY
ONE-PUMP-WORK Single pump card working alarm. ONE-PUMP-WORK
PUMP-LINK-ULLAGE-HIGH Pump laser connection insertion loss alarm. PUMP-LINK-ULLAGE-HIGH
PUMP-MIS-MATCH Pump card mismatch. PUMP-MIS-MATCH
PUMP-OFFLINE Pump card offline. PUMP-OFFLINE
