ME0P08SFUF70

  • Model:

    Huawei ME60 Series Multi-Service Control Gateways ME0P08SFUF70
  • Detail:

    ME60-X8 100G SFU Bundle Configuration(Including 2*SRUs,1*SFU)
  • Price:

    $21000.00

  • Condition:

    Brand New Sealed
  • Availability:

    IN STOCK

  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Overview
ME60-X8 100G SFU Bundle Configuration(Including 2*SRUs,1*SFU)



Overview (ME0P08SFUF70)

Huawei ME60 Series Multi-Service Control Gateways ME0P08SFUF70, ME60-X8 100G SFU Bundle Configuration - including 2*SRUs, 1*SFU. The ME60 provides a powerful session setup rate, which is up to 300 subscribers per second on each single slot, and up to 1200 subscribers per second on each single chassis. NAT session setup rate is up to 2M per second with CGN board, which delivers reliable non-stop services and excellent experience to subscribers. It ensures smooth and reliable running of various services.



Based on the solution with ME60, customers are able to construct a future-oriented and intelligent broadband IP network, which can greatly reduces the total cost of ownership of the network. The ME60 platform supports up to 240G subscriber access line card, and the industry’s largest capacity 160G CGN service board. ME60 has up to 256K concurrent subscribers per chassis, which provides flexibility to meet various requirements in ultra bandwidth era. In addition, the ME60 provides unique BNG Pool solution using hot backup technology which ensures service always online.

Quick Specs

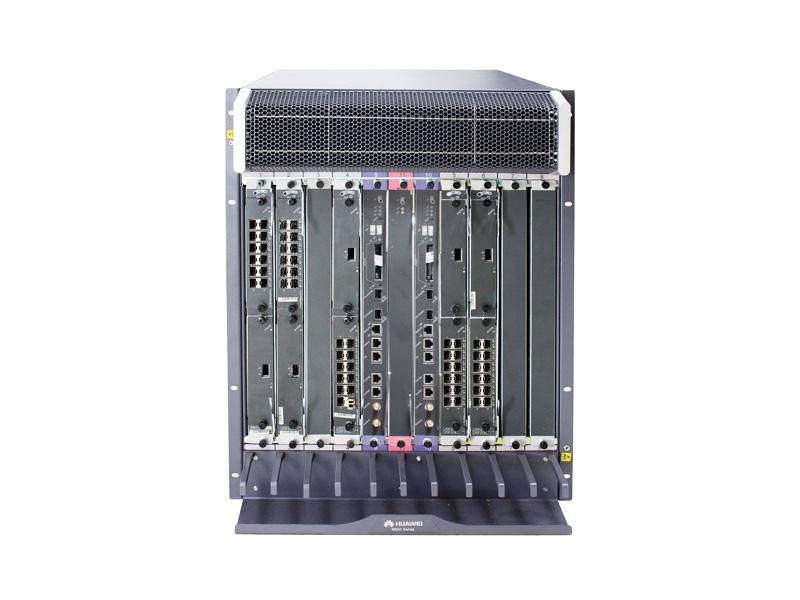

Figure 1 shows the appearance of Huawei Router - ME0P08SFUF70.

 ME0P08SFUF70

Table 1 shows the Quick Specs.

Product Code

Huawei Router - ME0P08SFUF70

Switching Capacity

12.58 Tbit/s

Slots

11 slots, including 2 SRUs (1:1 backup), 1 SFUs (2+1 backup), and 8 LPUs

Maximum Power Consumption

2,340W (120G)

Weight

136 kg (240G)

Dimensions (W x D x H)

442 mm x 650 mm x 620 mm (14U)

Product Details

Figure 2 shows the front panel of Huawei Router - ME0P08SFUF70.

 ME0P08SFUF70-front

Figure shows the back panel of Huawei Router - ME0P08SFUF70.

 ME0P08SFUF70-back

Compare to Similar Items

Table 3 shows the comparison between ME0P08SFUF70 and ME0P03BASA31.

Model

ME0P08SFUF70

ME0P03BASA31

Switching Capacity

12.58 Tbit/s

1.08 Tbit/s

Slots

11 slots, including 2 SRUs (1:1 backup), 1 SFUs (2+1 backup), and 8 LPUs

5 slots, including 2 MPUs (1:1 backup) and 3 LPUs

Maximum Power Consumption

2,340W (120G)

1,070W (AC)

Weight

136 kg (240G)

52 kg (AC)

Dimensions (W x D x H)

442 mm x 650 mm x 620 mm (14U)

442 mm x 650 mm x 220 mm (AC 5U)
