CR2M04BASA01
-
Model:
Huawei NetEngine NE20E Series Router CR2M04BASA01 -
Detail:
NE20E-S 4 AC Basic Configuration Includes NE20E-S 4 Chassis,1*MPUE,2*AC Power,Power cord,without Software Charge and Document -
Price:
$5500.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
Overview (CR2M04BASA01)
The Huawei NE20E-S CR2M04BASA01 router can be flexibly deployed at the access and aggregation layer of IP/MPLS networks and work with other NE routers to provide an all-around network solution for enterprise users, satisfying diversified service requirements in the future. Huawei NetEngine series router CR2M04BASA01 includes following features:
1) 2 MPUE slots, 2 NSP slots, 8 PIC slots, 2 AC power supply
2) 3.97Tbps switching Capacity, 180Mpps forwarding performance
3) Interface type: 40GE, 10GE, GE/FE, OC-3C/STM-1c POS, OC-12c/STM-4c POS, Channelized OC-3/STM-1 POS, E1/CE1
4) IPv4/IPv6 routing protocol, L2/L3 VPN, Multicast, QoS
5) Security, Reliability, High availability, Flexibility
Quick Specs

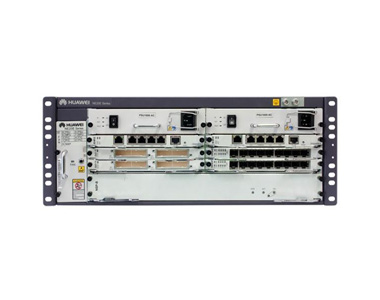

Figure 1 shows the appearance of Huawei Router - CR2M04BASA01.
Table 1 shows the Quick Specs.
|
Product Code |
Huawei Router - CR2M04BASA01 |
|
Forwarding Capacity |
480 Gbit/s |
|
Forwarding Performance |
180 Mpps |
|
Fixed Ports |
none |
|
Number of Slots |
2 MPUs 1 NSP 4 PICs |
|
Power Consumption (in full configuration) |
456W (AC)
|
|
Weight |
18.1 kg (AC) |
|
Dimensions (W x D x H) |
175 mm x 442 mm x 220 mm (AC, 4U) |
Compare to Similar Items
Table 3 shows the comparison between CR2M04BASA01 and CR2P2EBASD10.
|
Model |
CR2M04BASA01 |
|
|
Forwarding Capacity |
480 Gbit/s |
160 Gbit/s |
|
Forwarding Performance |
180 Mpps |
70 Mpps |
|
Fixed Ports |
none |
2 x 10 GE(SFP+) and 24 x GE (SFP) |
|
Number of Slots |
2 MPUs 1 NSP 4 PICs |
2 PICs
|
|
Power Consumption (in full configuration) |
456W (AC)
|
195W (DC) |
|
Weight |
18.1 kg (AC) |
9.3 kg (DC) |
|
Dimensions (W x D x H) |
175 mm x 442 mm x 220 mm (AC, 4U) |
89 mm x 442 mm x 220 mm (2U) |
