Overview
ZTE ZXR10 5950-36pm 5950-36tm 5950-36CM 5950-60PM 5950-60TM Switch

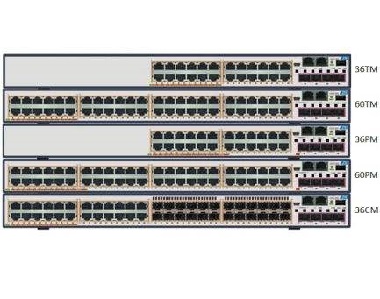

The ZXR10 5950 Series switch offers the following switch products:
5950-36TM: 24 Ethernet 10/100/1000M RJ45 electrical ports, 4 10GE SFP+ optical ports and 1 expansion slot, 2 AC/DC/HVDC power supply modules.
5950-60TM: 48 Ethernet 10/100/1000M RJ45 electrical ports, 4 10GE SFP+ optical ports and 1 expansion slot, 2 AC/DC/HVDC power supply modules.
5950-36PM: 24 Ethernet 10/100/1000M RJ45 electrical ports (POE/POE+), 4 10GE SFP+ optical ports and 1 expansion slot, 1 fan module, 2 AC/DC/HVDC power supply modules.
5950-60PM: 48 Ethernet 10/100/1000M RJ45 electrical ports (POE/POE+), 4 10GE SFP+ optical ports and 1 expansion slot, 1 fan module, 2 AC/DC/HVDC power supply modules.
5950-36CM: 24 GE Combo ports, 4 10GE SFP+ optical ports and 1 expansion slot, 1 fan module, 2 AC/DC/HVDC power supply modules.
The expansion card slot can be equipped with the following expansion cards:
l 2 * 40GE QSFP+ optical ports card
l 2 * 40GE MiniSAS ports VSC stacking card
l 8 * 10GE SFP+ optical ports card
l 8 * GE SFP optical ports card
System Specification
|
Function and Parameters
|
5950-36TM
|
5950-60TM
|
5950-36PM
|
5950-60PM
|
5950-36CM
|
|
|
Dimensions
(H*W*D) |
43.6mm*442mm*440mm
|
|||||
|
Fixed Interface
|
24 GE RJ45+
4 10GE SFP+
|
48 GE RJ45+
4 10GE SFP+
|
24 GE RJ45 (POE/POE+) + 4 10GE SFP+
|
48 GE RJ45 (POE/POE+) + 4 10GE SFP+
|
24 GE Combo+
4 10GE SFP+
|
|
|
Expansion Card Slot
|
1
|
1
|
1
|
1
|
1
|
|
|
Expansion Card Type
|
2*40GE QSFP+ card
2*40MiniSAS VSC stacking card
8*10GE SFP+card
8*GE SFP card |
|||||
|
Weight
|
<6.5kg
|
<7.0kg
|
<8.0kg
|
<8.1kg
|
<8.0kg
|
|
|
Management Port
|
1 GE MNG, 1 RJ45 Console, 1 Mini USB Console
|
|||||
|
AC Power Supply
|
Rated voltages: 100V~240V,50Hz~60Hz
|
|||||
|
DC Power Supply
|
-40V~-72V
|
-40V~-72V
|
-38.4V~-72V
|
-38.4V~-72V
|
-38V~-60V
|
|
|
HVDC Power Supply
|
240V/336V
|
240V/336V
|
240V/336V
|
240V/336V
|
240V/336V
|
|
|
Maximum Power Consumption
|
<70W
|
<84W
|
<800W (POE:720W)
|
<76W
|
||
|
Typical Power Consumption
|
30W
|
39W
|
42W
|
49W
|
38W
|
|
|
Power Redundancy Pattern
|
Two independent and swappable power supply module, support AC 1+1, DC 1+1
|
|||||
|
Heat Dissipation Pattern
|
Fan cooling, support multilevel speed regulation
|
|||||
|
Heat Dissipation
|
<196 BTU/h
|
<235 BTU/h
|
<224 BTU/h
|
<252 BTU/h
|
<213 BTU/h
|
|
|
Working Temperature
|
Long term working temperature: -10 ℃ ~ +50 ℃
Short term working Temperature: -10 ℃ ~ +55 ℃
|
|||||
|
Humidity
|
5%~95%
|
|||||
|
Working Altitude
|
<5,000 meters
|
<2,000 meters
|
||||
|
MTBF/MTTR
|
>400,000 hours/ < 30 minutes
|
|||||
|
Switching Capacity
|
288Gbps
|
336Gbps
|
288Gbps
|
336Gbps
|
288Gbps
|
|
|
Packet Forwarding Rate
|
216Mpps
|
252Mpps
|
216Mpps
|
252Mpps
|
216Mpps
|
|
Service Specification
|
Function
|
The ZXR10 5950 Series Switch
|
|
L2 Features
|
Support IEEE 802.1p (COS), IEEE 802.1q (VLAN)
Support IEEE 802.1d (STP)/ 802.1w (RSTP)/ 802.1s (MSTP)/EVST
Support IEEE 802.3ad (LACP)
Support IEEE 802.3z (1000Base-X) / 802.3ab (1000BaseT)
Support IEEE 802.3ae (10Gbase)
Support IEEE 802.3ba (40Gbase)
Support QinQ, Selective QinQ
Support Port mirroring, Traffic mirroring
Support PVLAN
Support GVRP
Support LLDP
|
|
L3 Features
|
Support IPv4 routing protocols, such as Static routing, Policy based routing , RIP, OSPF, BGP, and IS-IS
Support DHCP server/ relay/proxy, DHCP snooping
Support IPv6 routing protocols, such as Static routing, Policy based routing , RIPng, OSPFv3, IS-ISv6, and BGP4+
|
|
Multicast
|
Support IGMP v1/v2/v3, IGMPv1/v2/v3 snooping
Support PIM-SM, PIM-DM, PIM-SSM
Support administratively scoped multicast/ IPTV, MVR
Support MLD v1/v2, MLD snooping, PIMv6
|
|
QOS
|
Support traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p priority
Support 8 hardware-based queues per port
Support queue scheduling algorithms, such as SP, WRR, DWRR, SP+WRR
Support congestion avoidance mechanisms, such as WRED and tail drop
Support policing/shaping based on port
|
|
PoE
|
Support POE (IEEE 802.3 af)
Support POE+ (IEEE 802.3 at)
|
|
SDN
|
Support Openflow1.3
|
|
Security
|
Support L2-L4 ACL
Support standard ACL,MAC ACL, L2 ACL, extended ACL, mixed ACL, VLAN ACL
Support time-range ACL configuration, bidirectional ACL
Support 802.1x authentication and 802.1x server
Support MAC authentication
Support AAA/ RADIUS and TACACS+ authentication for login users
Support SSH v1.0/v2.0 server
Support CPU anti-attack
Support STP Root Guard, BPDU guard
Support URPF
Support RIP/OSPF/BGP MD5 encryption checking
|
|
Reliability
|
Support 1+1 redundancy power supply
Support Hot plugging
Support LACP
Support ZESR/ZESR+(ZTE Ethernet Switch Ring)
Support ERPS
Support VRRP,VRRPv3,VRRPE
Support GR for OSFP/BGP/IS-IS
|
|
Equipment Management
|
Support CLI, Telnet, SSH, Local and remote (Radius/Tacacs+) authentication of user
Support SNMP v1/v2/v3
Support Mirroring
Support RMON
Support NTP
Support Syslog, Sflow
|
|
Enhanced Features
|
Support M-BUTTON
Support Zero-touch deployment
|
