CR2M04BASD01
-
Model:
Huawei NetEngine NE20E Series Router CR2M04BASD01 -
Detail:
NE20E-S 4 DC Basic Configuration Includes NE20E-S 4 Chassis,1*MPUE,2*DC Power,Power cord,without Software Charge and Document -
Price:
$5000.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
Overview (CR2M04BASD01)
The Huawei NE20E-S CR2M04BASD01 router can be flexibly deployed at the access and aggregation layer of IP/MPLS networks and work with other NE routers to provide an all-around network solution for enterprise users, satisfying diversified service requirements in the future. Huawei NetEngine series router CR2M04BASD01 includes following features:
1) 2 MPU slots, 2 NSP slots, 8 PIC slots, 2 DC power supply
2) 3.97Tbps switching Capacity, 180Mpps forwarding performance
3) Interface type: 40GE, 10GE, GE/FE, OC-3C/STM-1c POS, OC-12c/STM-4c POS, Channelized OC-3/STM-1 POS, E1/CE1
4) IPv4/IPv6 routing protocol, L2/L3 VPN, Multicast, QoS
5) Security, Reliability, High availability, Flexibility
Quick Specs

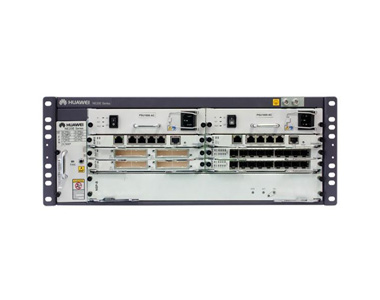

Figure 1 shows the appearance of Huawei Router - CR2M04BASD01.
Table 1 shows the Quick Specs.
|
Product Code |
Huawei Router - CR2M04BASD01 |
|
Switching Capacity |
480 Gbit/s |
|
Forwarding Performance |
180 Mpps |
|
Fixed Ports |
none |
|
Number of Slots |
2 MPUs 1 NSP 4 PICs |
|
Power module type |
DC power module |
|
Weight |
13.7 kg (DC) |
|
Dimensions (W x D x H) |
132 mm x 442 mm x 220 mm (DC, 3U) |
The Optical transceiver
Table 2 shows the recommended elements for the Huawei Router - CR2M04BASD01.
|
Model |
Description |
|
FE-SFP Optical Transceiver |
|
|
SFP,100M/155M,Multi-mode Module(1310nm,2km,LC) |
|
|
eSFP,100M/155M,Single-mode Module(1310nm,15km,LC) |
|
|
eSFP,FE,Single-mode Module(1310nm,40km,LC) |
|
|
GE-SFP Optical Transceiver |
|
|
SFP,GE,Electrical Interface Module(100m,RJ45) |
|
|
eSFP,GE,Multi-mode Module(850nm,0.55km,LC) |
|
|
eSFP,GE,Single-mode Module(1310nm,10km,LC) |
|
|
eSFP,GE,Single-mode Module(1310nm,40km,LC) |
|
|
eSFP,GE,Single-mode Module(1550nm,40km,LC) |
|
Compare to Similar Items
Table 3 shows the comparison between CR2M04BASD01 and CR2P2EBASA10.
|
Model |
CR2M04BASD01 |
|
|
Switching Capacity |
480 Gbit/s |
160 Gbit/s |
|
Forwarding Performance |
180 Mpps |
70 Mpps |
|
Fixed Ports |
none |
2 x 10 GE (SFP+) and 24 x GE (SFP) |
|
Number of Slots |
2 MPUs 1 NSP 4 PICs |
2 PICs |
|
Power module type |
DC power module |
AC power module |
|
Weight |
13.7 kg (DC) |
10.3 kg (AC) |
|
Dimensions (W x D x H) |
132 mm x 442 mm x 220 mm (DC, 3U) |
89 mm x 442 mm x 220 mm (2U) |
