S3700-28TP-EI-24S-AC
-
Model:
S3700-28TP-EI-24S-AC -
Detail:
S3700-28TP-EI-24S-AC(24 FE SFP,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP,AC 110/220V) -
Price:
$850.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
Overview (S3700-28TP-EI-24S-AC)
Huawei S3700-28TP-EI-24S-AC is next-generation Layer 3 Ethernet switch that supports IP multicasting and complex routing protocols. It delivers 24 FE SFP, 2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP.
Quick Specs

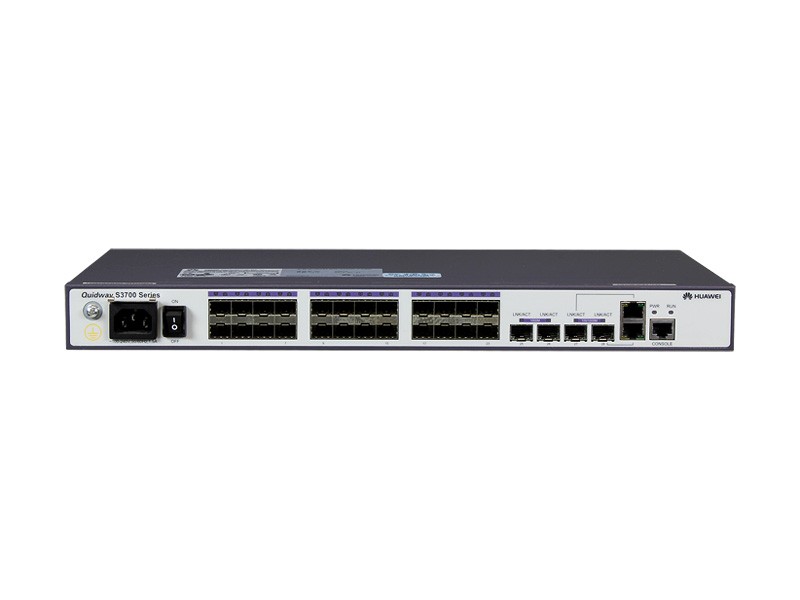

Figure 1 shows the appearance of Huawei S3700-28TP-EI-24S-AC switch.
Table 1 shows the Quick Specs.
|
Product Code |
S3700-28TP-EI-24S-AC |
|
Downlink Ports |
24 x 100 Base-FX SFP ports |
|
Uplink Ports |
2 x 1000BASE-X 2 x Combo (10/100/1000BASE-T or 100/1000BASE-X) |
|
MAC Address |
16K MAC |
|
VLAN |
4K VLANs |
|
Forwarding Performance |
9.6 Mpps |
|
Switching Capacity |
64 Gbit/s |
|
Stacking |
Supported |
|
Stack Connection Mode |
Service port connection |
|
Power |
AC power supply |
|
Heat Dissipation |
Forced air cooling |
|
Installation mode |
Rack mounting, desk mounting, wall mounting |
|
300-mm deep cabinet |
Supported |
|
Dimensions (W x D x H) |
44.2 cm x 22 cm x 4.36 cm |
Product Details
Figure 2 shows the front panel of Huawei S3700-28TP-EI-24S-AC switch.
Note:
|
① |
Ground Screw |
⑤ |
2 x 1000BASE-X Ethernet optical interfaces |
|
② |
AC Power Socket |
⑥ |
2 x Gigabit Combo Ports |
|
③ |
Power Switch |
⑦ |
One Console Port |
|
④ |
24 x 100BASE-X |
||
·Ground Screw is used with a ground cable.
·AC Power Socket is used with AC Power cables
·Two Combo Ports include 10/100/1000BASE-T and 100/1000BASE-X ports. FE/GE/GE-CWDM optical transceivers are applicable to the combo ports.
·Huawei S3700-28TP-EI-24S-AC switch supports Huawei Intelligent Stack Technology (iStack). Multiple S3700 switches can be connected with stack cables to set up a stack, which functions as a virtual switch.
Figure 3 shows the back looking of Huawei S3700-28TP-EI-24S-AC switch.
