S3700-28TP-PWR-EI
-
Model:
S3700-28TP-PWR-EI -
Detail:
S3700-28TP-PWR-EI Mainframe(24 Ethernet 10/100 ports, 2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP, PoE+,Dual Slots of power, Without Power Module) -
Price:
$1100.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
Overview (S3700-28TP-PWR-EI)
Huawei S3700-28TP-PWR-EI is a Layer 3 Ethernet Switch and a managed switch. It supports 24 FE POE ports, 2 GE Combo and 2 GE SFP ports.
Quick Specs

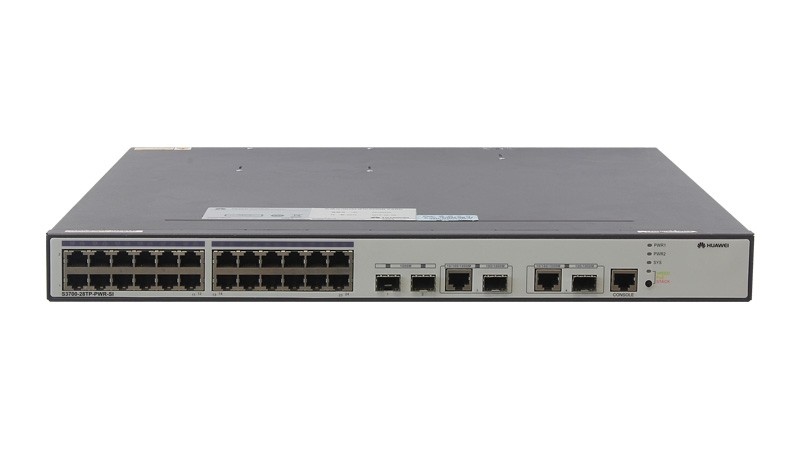

Figure 1 shows the appearance of Huawei S3700-28TP-PWR-EI switch.
Table 1 shows the Quick Specs.
|
Product Code |
S3700-28TP-PWR-EI |
|
Downlink Ports |
24 Ethernet 10/100 PoE+ ports |
|
Uplink Ports |
2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP |
|
Forwarding Performance |
9.6 Mpps |
|
Switching Capacity |
64 Gbit/s |
|
Stacking |
Supported |
|
Stack Connection Mode |
Service port connection |
|
Power |
Pluggable power module |
|
Heat Dissipation |
Forced air cooling |
|
Installation mode |
Rack mounting, desk mounting |
|
Dimensions (W x D x H) |
44.2 cm x 42 cm x 4.36 cm |
Product Details
Figure 2 shows the front panel of Huawei S3700-28TP-PWR-EI switch.
Note:
|
① |
Twenty-four 10/100BASE-TX Ethernet electrical interfaces |
③ |
Two 1000M combo interfaces (10/100/1000BASE-T+100/1000BASE-X) |
|
② |
Two 1000BASE-X Ethernet optical interfaces |
④ |
One console interface |
Figure 3 shows the back panel of Huawei S3700-28TP-PWR-EI switch.
Note:
|
① |
Ground screw |
③ |
Fan module |
|
② |
ESD jack |
④ |
Power supply unit slot |
