S5700-10P-LI-AC
-
Model:
S5700-10P-LI-AC 02354036 Huawei Quidway S5700 Switch -
Detail:
8 Ethernet 10/100/1000 ports, 2 Gig SFP, AC 110/220V -
Price:
$220.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
Overview (S5700-10P-LI-AC)
Huawei S5700-10P-LI-AC switch supports 8 x 10/100/1,000 Base-T Ethernet ports, 2 x GE SFP ports and can be powered by AC power supply. It’s one of the Huawei S5700-LI Series Simplified Gigabit Switches.
Quick Specs

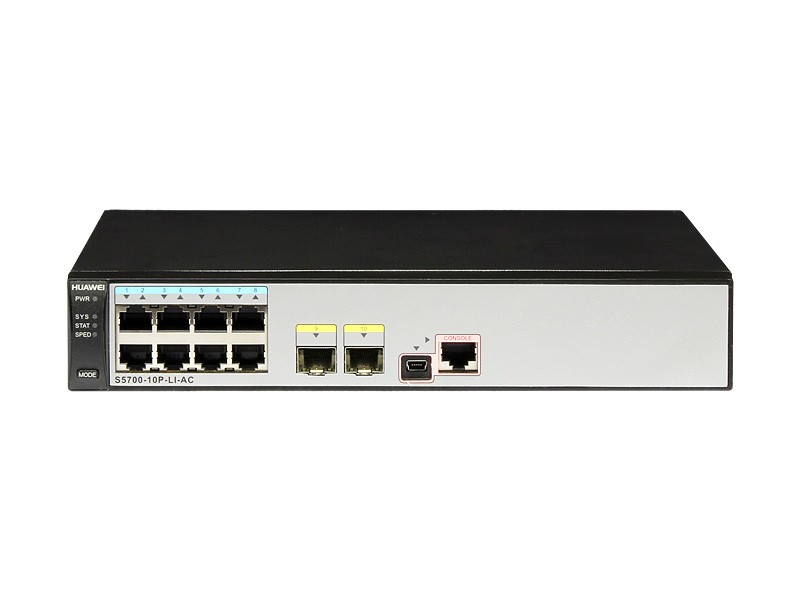

Figure 1 shows the appearance of Huawei S5700-10P-LI-AC switch.
Table 1 shows the Quick Specs.
|
Product Code |
S5700-10P-LI-AC |
|
Downlink Ports |
8 x 10/100/1,000 Base-T Ethernet ports |
|
Uplink Ports |
2 x GE SFP ports |
|
MAC Address |
16K |
|
VLAN |
4K |
|
Forwarding Performance |
15 Mpps |
|
Switching Capacity |
256 Gbit/s |
|
Power |
AC power supply |
|
Heat Dissipation |
Fan-free natural heat dissipation |
|
Installation mode |
Rack mounting (with separately purchased mounting brackets), desk mounting, and wall mounting |
|
300-mm deep cabinet |
Not Supported |
|
Dimensions (W x D x H) |
25 cm × 18 cm × 4.36 cm |
Product Details
Figure 2 shows the front panel of Huawei S5700-10P-LI-AC switch.
Note:
|
① |
Switch LEDs |
④ |
2 × 1000BASE-X Ethernet Optical Ports |
|
② |
Mode Button |
⑤ |
One Mini USB Port |
|
③ |
8 × 10/100/1000BASE-T Ethernet Electrical Ports |
⑥ |
One RJ45 Console Port |
·Switch LEDs include PWR, SYS, STAT and SPED LEDs.
·2 × 1000BASE-X Ethernet Optical Ports support GE, GE-CWDM, GE-DWDM optical modules, and GE SFP cooper modules (applicable in V200R002C00 and later versions).
·Huawei S5700-10P-LI-AC switch supports USB or RJ45 to console the device.
Figure 3 shows the back panel of Huawei S5700-10P-LI-AC switch.
Note:
|
① |
Ground Screw |
|
② |
AC Socket |
|
③ |
Jack for AC Terminal Locking Latch |
·Ground Screw is used with a ground cable.
·AC socket is used with an AC power cable.
·The AC terminal locking latch is not delivered with the switch.
