S5700-24TP-PWR-SI
-
Model:
S5700-24TP-PWR-SI 02352369 Huawei Quidway S5700 Switch -
Detail:
20 10/100/1000Base-T and 4 GE Combo, PoE, Dual Slots of power, Without Power Module -
Price:
$870.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
Overview (S5700-24TP-PWR-SI)
Huawei S5700-48TP-PWR-SI supports 20 PoE+ 10/100/1000BASE-T ports and 4 combo ports (10/100/1000BASE-T (PoE+) + 100/1000BASE-X). It has no Power supply, needs to purchase additional power W0PSA5000.
Quick Specs

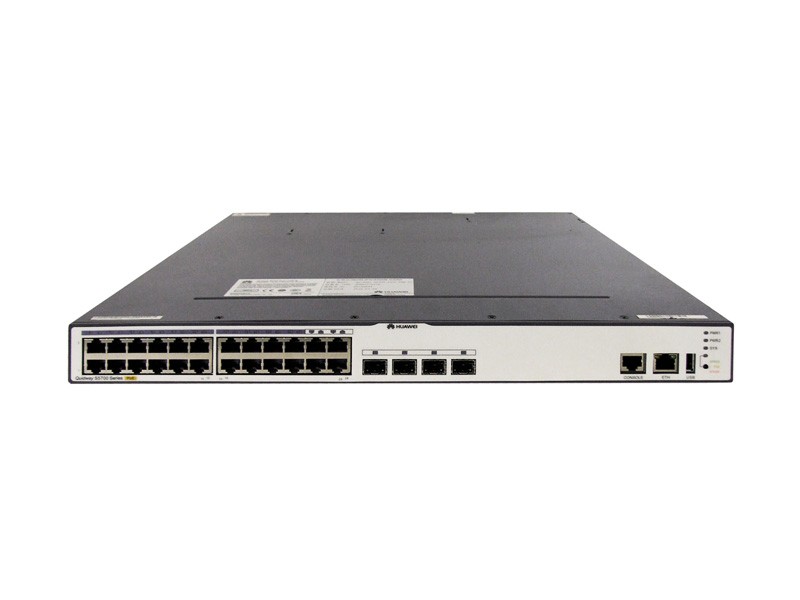

Figure 1 shows the appearance of Huawei S5700-24TP-PWR-SI switch.
Table 1 shows the Quick Specs.
|
Product Code |
S5700-24TP-PWR-SI |
|
Downlink Ports |
20 PoE+ 10/100/1000BASE-T ports |
|
Uplink Ports |
4 combo ports (10/100/1000BASE-T (PoE+) + 100/1000BASE-X) |
|
Forwarding Performance |
36 Mpps |
|
Switching Capacity |
256 Gbit/s |
|
Stack |
Supported |
|
Stack Ports |
Two stack ports available on each stack card |
|
Power |
Two power module slots |
|
Heat Dissipation |
Pluggable fan modules for forced air cooling |
|
Memory (RAM) |
256 MB |
|
Flash |
32 MB |
|
Dimensions (W x D x H) |
44.2 cm x 42 cm x 4.36 cm |
Product Details
Figure 2 shows the front panel of Huawei S5700-24TP-PWR-SI switch.
Note:
|
① |
Twenty PoE+ 10/100/1000BASE-T ports |
④ |
ETH management port |
|
② |
Four combo ports (10/100/1000BASE-T (PoE+) + 100/1000BASE-X) |
⑤ |
USB port |
|
③ |
One console port |
Figure 3 shows the back panel of Huawei S5700-24TP-PWR-SI switch.
Note:
|
① |
ESD jack |
④ |
Power module slot 2 |
|
② |
Rear card slot |
⑤ |
Power module slot 1 |
|
③ |
Fan slot with installed fan module |
