Huawei ATN 905-V ANPM00AICV00 Router
Functions and features of the ATN 905
|
Function and Feature |
Description |
|
|---|---|---|
|
Auxiliary interface function |
Provides one NM serial port or NM network port to communicate with the NMS so that the NMS can manage and query the equipment. |
|
| Provides two interfaces for inputting and outputting the external clock/time to obtain the external clock/time information. (Only the ATN 905 DC supports this function.) | ||
| Provides one alarm input/output interface. The interface provides three inputs of alarm digital parameters. (Only the ATN 905A-P supports this function.) | ||
|
Provides one RS485 interface. The interface helps managed external power system. (Only the ATN 905A-D supports this function.) |
||
|
Ethernet interface function |
FE/GE SFP interfaces support FE optical modules, FE electrical modules, GE optical modules, GE electrical modules, AE 905S modules (supported by the FE/GE2 interface of the ATN 905A), and GPON optical modules (supported by the indoor ATN 905). |
|
|
FE/GE electrical interfaces support signals at 10 Mbit/s, 100 Mbit/s, and 1000 Mbit/s. |
||
| Supports inloops and outloops. | ||
| GE interfaces support flow control. | ||
| Supports Layer 2 and Layer 3 working modes. | ||
|
Supports physical-layer clock synchronization (synchronous Ethernet). Supports IEEE 1588v2 and IEEE 1588 ACR. |
||
|
VDSL2 interface function (supported by only the ATN 905-V and ATN 905A-V) |
Used on the NNI side. |
|
| Compatibility with ADSL2+ (supported by only the ATN 905-V) | ||
| Provides one binding group. | ||
|
Supports Vectoring. |
||
| ATN 905A-V |
Supports the Annex B protocol mode. |
|
| ATN 905-V |
|
|
|
E1 interface function (supported by only the ATN 905-E) |
Supports the E1 and CE1 modes. | |
| Supports the master/slave clock mode. | ||
| Supports the HDB3 line coding (unconfigurable). | ||
| Supports inloops and outloops. | ||
| Supports the PRBS function in framed or unframed mode of an E1 interface in the receive/transmit direction. | ||
|
Supports CES services in CESoPSN and SAToP modes. |
||

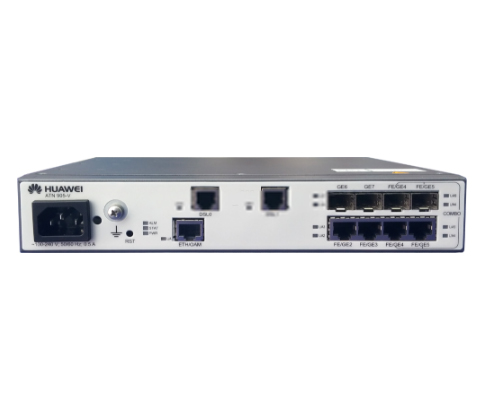

Appearance of an indoor ATN 905-V device
