Huawei ATN 905-E ANPM001AICE0 Router

  • Model:

    Huawei ATN Series
  • Detail:

  • Price:

    $1500.00

  • Condition:

    Brand New Sealed
  • Availability:

    IN STOCK

  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Overview

 Huawei ATN 905-E ANPM001AICE0 Router

 Functions and features of the ATN 905

Function and Feature

Description

Auxiliary interface function

Provides one NM serial port or NM network port to communicate with the NMS so that the NMS can manage and query the equipment.

Provides two interfaces for inputting and outputting the external clock/time to obtain the external clock/time information. (Only the ATN 905 DC supports this function.)
Provides one alarm input/output interface. The interface provides three inputs of alarm digital parameters. (Only the ATN 905A-P supports this function.)

Provides one RS485 interface. The interface helps managed external power system. (Only the ATN 905A-D supports this function.)

Ethernet interface function

FE/GE SFP interfaces support FE optical modules, FE electrical modules, GE optical modules, GE electrical modules, AE 905S modules (supported by the FE/GE2 interface of the ATN 905A), and GPON optical modules (supported by the indoor ATN 905).

FE/GE electrical interfaces support signals at 10 Mbit/s, 100 Mbit/s, and 1000 Mbit/s.

Supports inloops and outloops.
GE interfaces support flow control.
Supports Layer 2 and Layer 3 working modes.

Supports physical-layer clock synchronization (synchronous Ethernet).

Supports IEEE 1588v2 and IEEE 1588 ACR.

VDSL2 interface function (supported by only the ATN 905-V and ATN 905A-V)

Used on the NNI side.

Compatibility with ADSL2+ (supported by only the ATN 905-V)
Provides one binding group.

Supports Vectoring.

ATN 905A-V

Supports the Annex B protocol mode.

ATN 905-V
  • ADSL2+ supports the Annex A protocol mode.
  • VDSL2 supports the Annex B protocol mode.

E1 interface function (supported by only the ATN 905-E)

Supports the E1 and CE1 modes.
Supports the master/slave clock mode.
Supports the HDB3 line coding (unconfigurable).
Supports inloops and outloops.
Supports the PRBS function in framed or unframed mode of an E1 interface in the receive/transmit direction.

Supports CES services in CESoPSN and SAToP modes.

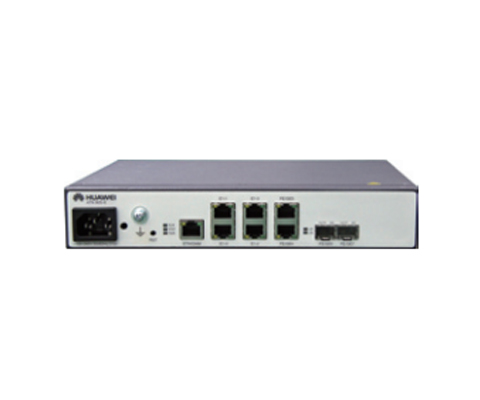

 Appearance of an indoor ATN 905-E device
