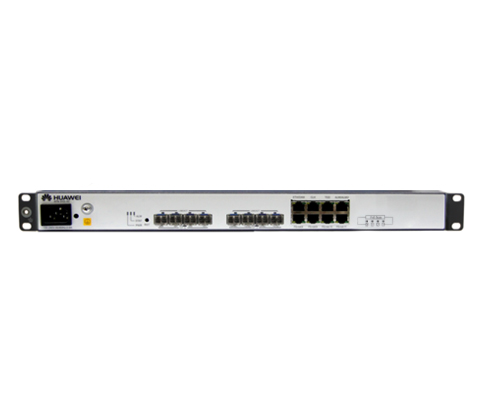

Huawei ATN 910I-P ANFM00HSAP00 Router

  • Model:

    Huawei ATN Series
  • Detail:

  • Price:

    $1500.00

  • Condition:

    Brand New Sealed
  • Availability:

    IN STOCK

  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Overview

 Huawei ATN 910I-P ANFM00HSAP00  Router

 Functions and features of the ATN 910I

Function and Feature

Description

Switching capability

24 Gbit/s (12 Gbit/s for the upstream traffic and 12 Gbit/s for the downstream traffic)

Auxiliary interface function

Provides one NM serial port or NM network port to communicate with the NMS so that the NMS can manage and query the equipment.

Provides two interfaces for inputting and outputting the external clock/time to obtain the external clock/time information.
Provides one alarm input/output interface. The interface provides three inputs of alarm digital parameters.

Ethernet interface function

FE SFP interfaces support FE optical modules and FE electrical modules.

GE SFP interfaces support GE optical modules and GE electrical modules.

FE/GE SFP interfaces support FE optical modules, FE electrical modules, GE optical modules, and GE electrical modules.

FE electrical interfaces support signals at 10 Mbit/s and 100 Mbit/s.

FE/GE electrical interfaces support signals at 10 Mbit/s, 100 Mbit/s, and 1000 Mbit/s.

Electrical interfaces support the PoE function and a maximum output power of 30 W (only on the ATN 910I-P).

Supports inloops and outloops.
GE interfaces support flow control.
Supports Layer 2 and Layer 3 working modes.

Supports physical-layer clock synchronization (synchronous Ethernet).

Supports IEEE 1588v2 and IEEE 1588 ACR.

E1 interface function

Supports a 75-ohm or 120-ohm impedance value (based on the actual E1 cable)

Supports the E1 and CE1 modes.
Supports the master/slave clock mode.
Supports the HDB3 line coding (unconfigurable).
Supports inloops and outloops.
Supports the PRBS function in framed or unframed mode of an E1 interface in the receive/transmit direction.
Supports the ATM, TDM, and PPP protocols.

 Functional block diagram of the ATN 910I
