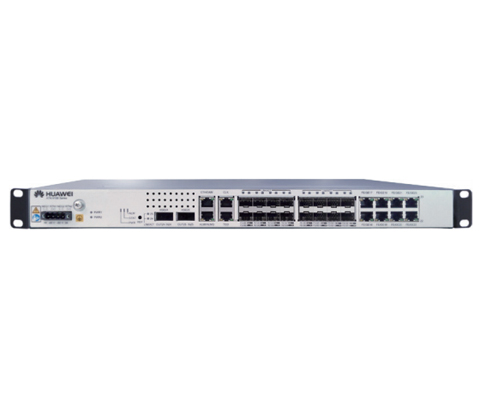

Huawei ATN 910 ANC2CXPI/ANC2CXPL - System Control, Cross-connect, and Multi-protocol Process Unit
-
Model:
Huawei ATN Series -
Detail:
-
Price:
$1500.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
Huawei ATN 910 ANC2CXPI/ANC2CXPL - System Control, Cross-connect, and Multi-protocol Process Unit
Indicators
The following indicators are present on the front panel of the ANC2CXPI/ANC2CXPL:
- STAT indicator, red, green, or orange, which indicates the working status
- PROG indicator, red or green, which indicates the running status of the program
- SYNC indicator, red or green, which indicates the clock synchronization status
- SRV indicator, which is reserved for later use
- CRIT indicator, red, which indicates critical alarms
- MAJ indicator, orange, which indicates major alarms
- MIN indicator, yellow, which indicates minor alarms
- GE L/A0 to GE L/A1, FE L/A0 to FE L/A3 indicators, orange or green, which indicate the connection status of the port
Functions and features of the ANC2CXPI/ANC2CXPL
|
Function and Feature |
Description |
|
|---|---|---|
|
Basic function |
Switching capability |
ANC2CXPI: 13.6 Gbit/s (6.8 Gbit/s for the upstream traffic and 6.8 Gbit/s for the downstream traffic) ANC2CXPL: 24 Gbit/s (12 Gbit/s for the upstream traffic and 12 Gbit/s for the downstream traffic) |
|
The ANC2CXPI provides four FE electrical interfaces, four FE SFP interfaces, and two GE SFP interfaces. |
||
|
The ANC2CXPL provides four FE/GE electrical interfaces, four FE/GE SFP interfaces, and two GE SFP interfaces. |
||
|
Supports the hot swappable function. |
||
| Detects the temperature and voltage of the board. | ||
|
Auxiliary interface function |
Provides one NM serial port or NM network port to communicate with the NMS so that the NMS can manage and query the equipment. |
|
| Provides two interfaces for inputting and outputting the external clock/time to obtain the external clock/time information. | ||
| Provides one alarm input/output interface. The interface provides three inputs of alarm digital parameters. | ||
|
Ethernet interface function |
FE SFP interfaces support FE optical modules and FE electrical modules. GE SFP interfaces support GE optical modules and GE electrical modules. FE/GE SFP interfaces support FE optical modules, FE electrical modules, GE optical modules, and GE electrical modules. |
|
|
FE electrical interfaces support signals at 10 Mbit/s and 100 Mbit/s. FE/GE electrical interfaces support signals at 10 Mbit/s, 100 Mbit/s, and 1000 Mbit/s. |
||
| Supports inloops and outloops. | ||
| GE interfaces support the traffic control function. | ||
| Supports Layer 2 and Layer 3 working modes. | ||
|
Supports physical-layer clock synchronization (synchronous Ethernet). Supports IEEE 1588v2 and IEEE 1588 ACR. |
||
