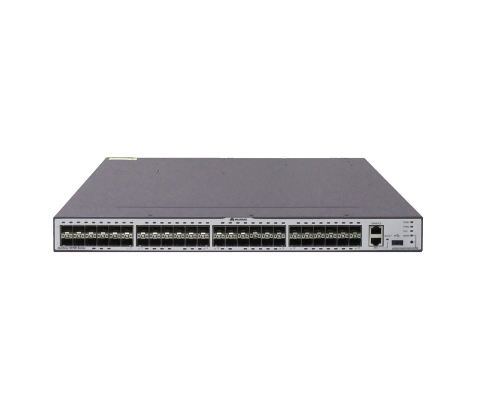

Huawei S6700-48-EI

  • Model:

    Huawei S6700 Series Switches
  • Detail:

    S6700 Series switches are available in 24-port and 48-port S6700-EI models, for resilient IPv4 and smooth migration to IPv6 networking.
  • Price:

    $6000.00

  • Condition:

    Brand New Sealed
  • Availability:

    IN STOCK

  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Overview
S6700 Series switches are available in 24-port and 48-port S6700-EI models, for resilient IPv4 and smooth migration to IPv6 networking.



S6700 Series 10 GE Switches

High-performance, super-reliable 10 GE switches with comprehensive Quality of Service and security capabilities, ideal for use as access switches in large-scale data centers and core switches in campus networks.

Advanced switching architecture and line-card buffering ensure smooth, sustained performance; Huawei’s intelligent iStack virtualization technology enables both easy management and expandability. Tight integration with Huawei’s eSight NMS for efficient provisioning, reconfiguring, and administration.

S6700 Series switches are available in 24-port and 48-port S6700-EI models, for resilient IPv4 and smooth migration to IPv6 networking.

Specifications

Specifications

S6700-24-EI

S6700-48-EI

Switching Capacity

960 Gbit/s

960 Gbit/s

Forwarding Performance

360 Mpps

720 Mpps

Port

24 x GE SFP/10 GE SFP+ ports

48 x GE SFP/10 GE SFP+ ports

IPv4 Routing

Static routing, RIPv1, RIPv2, ECMP, and URPF

OSPF, IS-IS, and BGP

VRRP

Policy-based routing

Routing policy

Multicast

Static Layer 2 multicast MAC address

MAC-based multicast forwarding

IGMP snooping and IGMP fast leave

Multicast VLAN

MLD snooping

IGMP proxy

Controllable multicast

Port-based multicast traffic statistics

IGMP v1/v2/v3

PIM-SM, PIM-DM, and PIM-SSM

MSDP

MPLS Features

MPLS L3VPN

MPLS L2VPN (VPWS/VPLS)

MPLS-TE

MPLS QoS

QoS/ACL

Rate limiting on packets sent and received by an interface

Packet redirection

Port-based traffic policing and two-rate, three-color CAR

Eight queues on each port

WRR, DRR, SP, WRR + SP, and DRR + SP queue scheduling algorithms

Re-marking of the 802.1p priority and DSCP priority

Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, port number, protocol type, and VLAN ID

Rate limiting in each queue and traffic shaping on ports

Security

DoS attack defense, ARP attack defense, and ICMP attack defense

802.1x authentication and limit on the number of users on an interface

AAA authentication, RADIUS authentication, and TACACS authentication

SSH v2.0

Hypertext Transfer Protocol Secure (HTTPS)

CPU defense

Blacklist and whitelist

Interoperability

VBST (Compatible with PVST/PVST+/RPVST)

LNP (Similar to DTP)

VCMP (Similar to VTP)

For detailed interoperability certifications and test reports, click HERE.
