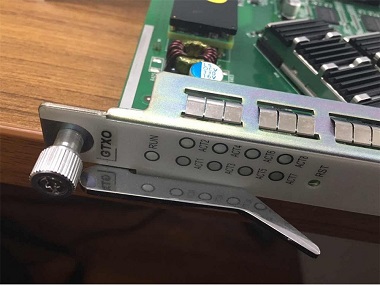

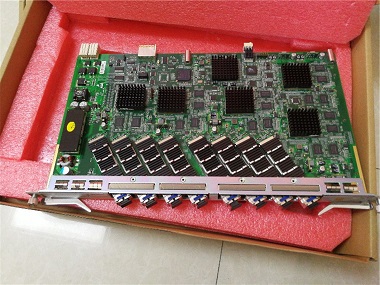

ZTE GTXO GTTO 8-port 10G GPON XGPON board for ZTE C300 C320 ZTE XGPON 10G GPON

        ZTE OLT ZXA10 C300 GPON Big-capacity Basic Cofiguration (2 SCXM+2 PRWG + 2GUFQ +1GTGO)

      ZXA10 C300 is a future-proof and high-capability optical access platform, which is a unified platform for GPON, EPON, 10G EPON, PTP, and the smooth migration of XG-PON1, NG-PON2 with a 300mm deep shelf.

     ZXA10 C300, the world's first future-proof and largest capacity optical access platform, has been developed with regard to mass optical access roll-out as well as economy. It provides HIS, VoIP, TDM, IPTV, mobile backhaul and other services access.

     ZTE OLT ZXA10 C300 Card/Board SCXLSCXM SCXN SCXLMWIA GTGO PRWG CICG GUFQ GUSQ HUTQ XUTQ GDFO CTBB CTTB CTLA

PON Features

• EPON compliant with IEEE 802.3ah
• GPON compliant with ITU G.984.x
• 10GEPON compliant with IEEE 802.3v
• Support up to 1:128 optical split ratio for GPON,1:64 optical split ratio for EPON and 1:256 optical split ratio for 10GEPON
• Support OLS (Optical Laser Supervising )
• Physical reach: 20~60km
• Highly-efficient DBA: NSR-DBA,SR-DBA
• 1PPS+TOD,IEEE 1588V2
• Transceiver power: Class B+ or class C+
• Type B and type C optical link protection
• FEC
• AES128
• SCB

Features

• 1:1/N:1 VLAN
• 802.1ad, SVLAN, Selective QinQ, VLAN stacking
• Line-speed forwarding
• STP/RSTP/MSTP compliant with IEEE 802.1d/802.1w/802.1s
• Link aggregation IEEE 802.3ad
• DHCP server, DHCP Relay (option 60/82), DHCP proxy
• L3 routing:
• RMON II
• Multicast – IPTV
• QoS
• Queue & scheduling mechanism: SP, DWRR, SP+DWRR
• IPv4 DSCP Diffserv
• Stream classification, rate limiting, shaping and priority setting

Dimensions

449.2mm (H) * 535mm (W) * 270mm (D) (21 inch shelf)

443.7mm (H) * 482.6mm (W) * 270mm (D) (19 inch shelf)

2200 mm (H) x 600 mm (W) x 300 mm ((D) (Rack)

Weight

60kg (Empty rack for 19inch and 21 inch)

175kg  (19 inch rack)

183kg (21 inch Rack)
