ZTE Router ZXR10 6800 Series Router RA-6802 RA-6804 RA-6812 RA-6800

  • Model:

    ZTE Router ZXR10 6800 Series Router
  • Detail:

    RA-6802 RA-6804 RA-6812 RA-6800
  • Price:

    $2000.00

  • Condition:

    Brand New Sealed
  • Availability:

    IN STOCK

  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Overview
RA-6802 RA-6804 RA-6812 RA-6800

 ZTE Router ZXR10 6800 Series Router RA-6802 RA-6804 RA-6812 RA-6800

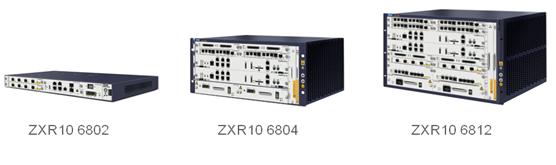

 ZXR10 6800 series router is an intelligent multi-service routers, combines routing, switching, wireless, security, VPN, and BRAS in one. With a modular, scalable system architecture and open service unit (OSU), ZXR10 6800 can help customers to build smart, highly efficient, reliable, flexible, easy-dimensional network. ZXR10 6800 series routers based on the difference in the number of slot and performance, launched three models 6802,6804 and 6812, they can be widely and flexibly used in G&E EGW, the core of the campus network, enterprises headquarters / branch, the core / aggregation / access network of the industry vertical network, large customers AN, DCN, CDN, MAN.



specification

ZXR10 6802

ZXR10 6804

ZXR10 6812

Physical Size

(H×W×D)mm

44 × 442 × 200 (1 RU)

176 × 442 × 200 (4 RU)

264×442×200 (6 RU)

PIU Slot Number

2

4 (5*1)

12 (13*1)

MPFU Number

1

1:1 redundancy

1:1 redundancy

Power Supply Unit Number

1

1+1 redundancy

(can AC and DC hybrid supply)

1+1 redundancy

(can AC and DC hybrid supply)

Forwarding Capability

2Mpps

7.5M~30Mpps

7.5M~60Mpps

Fixed Interface

1 Console port

1 USB2.0

2GE RJ45 + 2GE SFP

1 Console port

1 AUX port

2 USB 2.0

1 Console port

1 AUX port

2 USB 2.0

Memory

4G

4G

4G

SD Slot

1

1

1

Flash

4G

4G

4G

L2

MAC management, VLAN, QinQ, SuperVLAN, Smartgroup , PPP, PPPOE, HDLC and FR

IPv4/IPv6

static route,  RIP/RIPng, OSPF/OSPFv3, IS-IS/IS-ISv6 and BGPv4/BGP4+

Multicast

Static multicast, IGMPv1/v2/v3, PIM-DM, PIM-SM, PIM-SSM, MSDP,  PIM-SSM mapping, MLDv1/v2

MPLS

MPLS L3 VPN, VPLS/HVPLS, PWE3, Inter-AS Option A/B/C and 6vPE

QoS

classify, Marking, Traffic policing, Congestion management, Queue scheduling, Shaping, QPPB and H-QoS

Reliability

BFD for everything, VRRP, LACP, MPPP, FRR, PW redundancy and SDC link redundancy

Tunnel technology

MPLS-TE, GRE, IPSec and L2TP

Clock synchronization
