ZTE ZXR10 8900E Series Core Switch RS-8902E RS-8905E RS-8908E RS-8912E
-
Model:
ZTE ZXR10 8900E Series -
Detail:
RS-8902E RS-8905E RS-8908E RS-8912E -
Price:
$2000.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
Share:
Overview

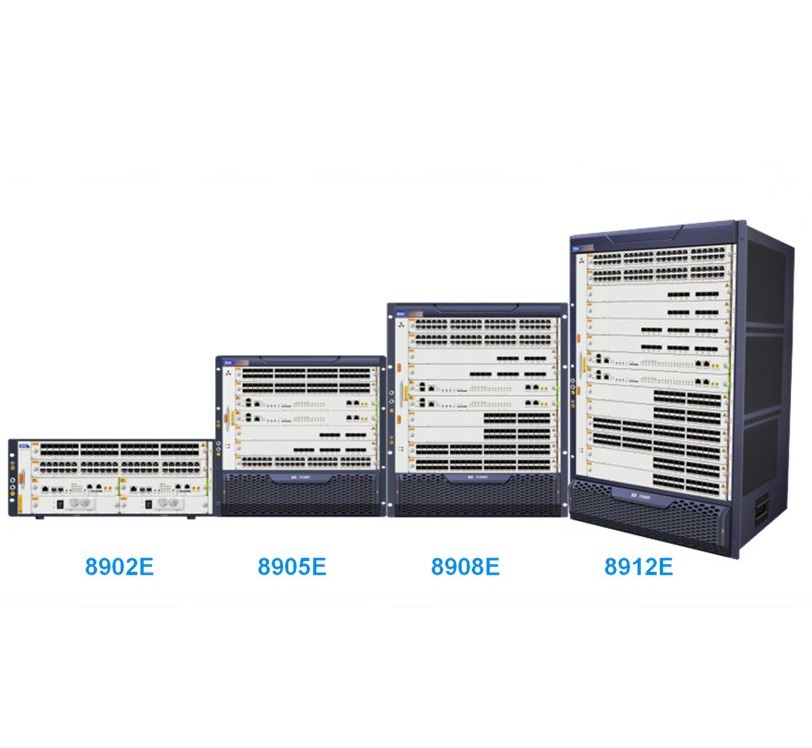

RS-8902E RS-8905E RS-8908E RS-8912E
ZXR10 8900E series core switches are high-end modular switches featuring big switching capacity, full L2/L3/MPLS service capability, high-performance, superior reliability and enhanced security. ZXR10 8900E series switches are designed for the core/aggregation layer of the campus network or Datacenter core. ZXR10 8900E series switches include four models: ZXR10 8902E, 8905E, 8908E and 8912E.
|
Functions and Parameters
|
8912E
|
8908E
|
8905E
|
8902E
|
|||
|
Basic Parameters
|
Number of Slots
|
14
|
10
|
7
|
4
|
||
|
Number of line card Slots
|
12
|
8
|
5
|
2
|
|||
|
Backplane Capacity
|
19.2Tbps
|
19.2Tbps
|
12Tbps
|
3.2Tbps
|
|||
|
Switching Capacity
|
2Tbps/7.68Tbps
|
2Tbps/7.68Tbps
|
1.28Tbps/4.8Tbps
|
960Gbps
|
|||
|
Packet Forwarding Rate
|
1536Mpps/5760Mpps
|
1536Mpps/5760Mpps
|
960Mpps/3600
Mpps
|
720Mpps
|
|||
|
Route table depth
|
512K
|
||||||
|
MAC table depth
|
512K
|
||||||
|
Features
|
L2 Features
|
IEEE 802.1q VLAN,IEEE 802.1p,IEEE 802.3ad, STP,RSTP,MSTP, Selective QinQ, VLAN translation, PVLAN,DHCP Snooping
|
|||||
|
L3 Features
|
VRRP, Super VLAN,DHCP-Server/Relay, Static routing, RIP,OSPF,IS-IS, BGP, Policy based routing, MCE
|
||||||
|
MPLS/MPLS VPN
|
LDP,MPLS TE,VPLS,VPWS,H-VPLS,MPLS L3 VPN
|
||||||
|
Multicast
|
Administratively scoped multicast/IPTV,MVR, IGMP Snooping, Filtering, Proxy and Fast Leave, IGMP,PIM-DM/SM,PIM-SSM,DVMRP,MSDP
|
||||||
|
QOS
|
Marking, modification of Qos priority and mapping between 802.1p,IP DSCP,MPLS EXP. 8 hardware-based queues per port, SP, WRR,SP+WRR queue scheduling mechanisms, Policing/shaping based on port/flow, support various Congestion avoidance mechanisms including WRED and Tail-Drop
|
||||||
|
Security
|
CPU anti-attack, CPU overload protection, Broadcast/Multicast/unknown Unicast suppression, STP Root Guard, BPDU guard, uRPF, RIP/OSPF/BGP MD5 encryption checking, IP source Guard, DAI
|
||||||
|
IPv6
|
IPv6,ND, DHCPv6, PMTU,MLD Snooping, Static routing,RIPng,BGP4+,OSPFv3,IS-ISv6,Manual IPv6 tunnel,6to4 ,6PE,ISATAP ,IPv6 ACL, Equipment management based on IPv6
|
||||||
|
Reliability
|
Redundant Control module/Power supply/Fan module, LACP ,MC-LAG,ZESS ,ZESR/ZESR+,VRRP, FRR,NSF,GR,VSC
|
||||||
|
Enhanced Features
|
VSC,1588v2 and Sync Ethernet,BFD,802.1ag,802.3ah,Y.1731
|
||||||
|
Equipment management
|
Equipment management
|
RS232 Console(RJ45),Ethernet management port, CLI, Telnet, SSH, Local and remote(Radius/Tacacs+)authentication of user, SNMP, MIB, NetNumen U31, Cluster Management(ZGMP), RMON, Syslog, Fast in-batch inspection tool
|
|||||
|
Interface module
|
Interface module
|
||||||
