ZTE F600, ZTE ONT/ONU, GPON EPON, ZXHN F600, international version
-
Model:
ZTE ZXA10 F600 -
Detail:
ZTE F600 V5 version ZTE GPON ONT ONU -
Price:
$500.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894

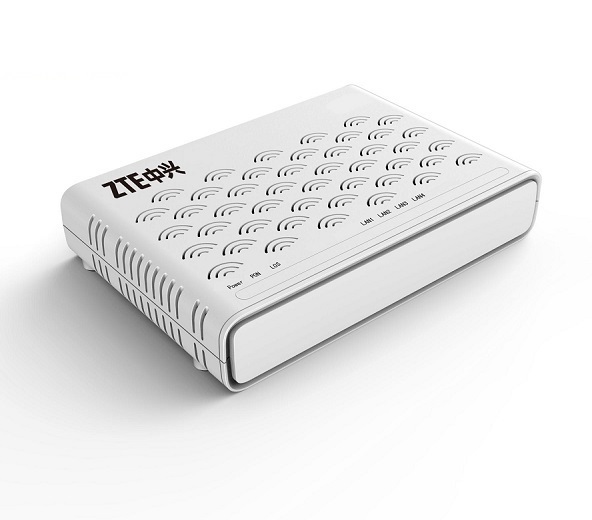

ZXHN F600 is a GPON Optical Network Terminal designed for FTTH scenario. It provides
subscribers rich, colorful, individualized, convenient and comfortable services including video (IPTV) and high speed internet access. It has a small, smart appearance and green, energy-saving advantage.
GPON Interface
Optical port : 1 x GPON interface (SC/APC)
Transmission Distance: 0 ~ 20km
Transmit rate: 2.488Gbps downstream; 1.244Gbps upstream
User Network Interface
4 x 10/100/1000Base-T
Half/full duplex; Auto MDI/MDIX; Auto negotiation
Optical Module
Wavelength:
Receiving: 1480~1500 nm
Transmitting: 1290~1330 nm
Receiving Sensitivity: -28dBm
Transmitting Optical Power: 0.5~5dBm
Physical Performance
Power consumption: <6W
Dimensions: 180mm(W) x 38mm(H) x 127mm(D)
Working temperature: 0oC ~ 40oC
Working humidity: 5% ~ 95%
Weight: about 250g
Power supply: 12 V DC
Mounting mode: Desktop/Wall mounting
Supports hidden and coiled fiber
Backup battery: 3AH/6AH (Optional)
Main Function
Supported service: Internet, IPTV
GPON: 8 T-CONTs, 32 GEM Ports
VLAN: 802.1Q, 802.1P, 802.1ad
MAC address table: 1k
Multicast: IGMP v1/v2 Snooping
Multicast group per user port: 256
QoS: service flow classification based on physical port, Ethernet type; ingress rate limit;
egress shaping
Management: local web management, OMCI
