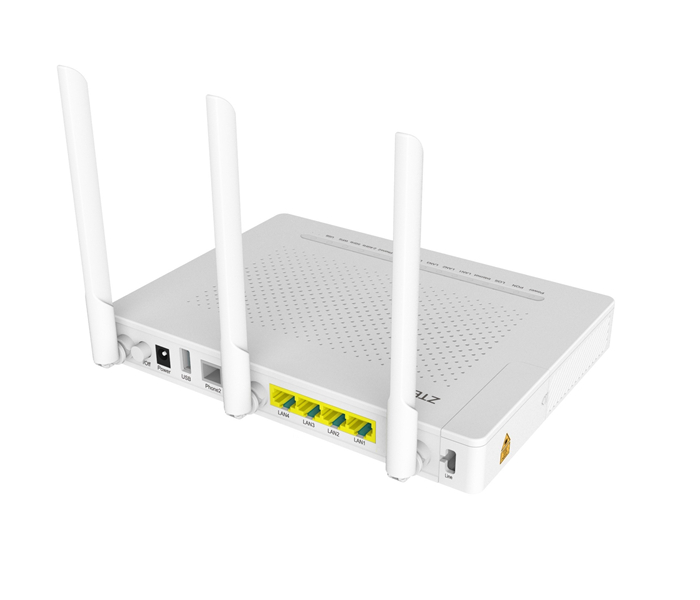

ZTE ZXHN F670 PON ONT

  • Model:

    ZTE ZXHN F670 PON ONT
  • Detail:

    The ZXHN F670 is an ITU-T G.984 and ITU-T G.988 compliant optical network terminal (ONT)
  • Price:

    $500.00

  • Condition:

    Brand New Sealed
  • Availability:

    IN STOCK

  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Overview
The ZXHN F670 is an ITU-T G.984 and ITU-T G.988 compliant optical network terminal (ONT)

 The ZXHN F670 is an ITU-T G.984 and ITU-T G.988 compliant optical network terminal (ONT) that is designed for high-end home users. It is well suited to fiber to the home (FTTH) scenarios and supports desktop mounting. At the network side, it supports 2.488 Gbps downlink and 1.244 Gbps uplink. At the user side, it provides four GE ports, two POTS ports, one USB 2.0 port, and Wi-Fi 802.11n 2x2@2.4GHz & 802.11ac 3x3 @5GHz concurrent. By using the ZXHN F670, the home users can access data, video and voice services, and enjoy high-speed internet connection.



Supported service: VoIP, Internet, IPTV
GPON: 8 T-CONTs, 32 GEM Ports
VLAN: 802.1Q, 802.1P, 802.1ad
MAC address table: 1k
L3 function: DHCP server/Client, DNS Client, NAT
IPv6: Dual Stack, DS-Lite
VoIP: SIP/H.248, G.711/G.722, T.30/T.38
Wi-Fi: 4 SSIDs, 2x2 MIMO@2.4G, 3x3 MIMO@5G , WPS
Wi-Fi authentication: Shared key, 128-bit WEP, WPA-PSK, WPA2-PSK, WPA-PSK + WPA2-PSK
Multicast: IGMP v1/v2/V3 Snooping/Proxy, MLD v1 Snooping
Multicast group: 64
QoS: service flow classification based on physical port, MAC address, VLAN ID, VLAN priority level, IP address; SP/WRR/SP+WRR
Management: local web management, OMCI, TR069
USB: DLNA DMS, USB backup

Net dimensions:            220 mm (W) x 315 mm (H) x 35 mm (D)
Net weight:                0.63kg
Typical Power consumption: 12.5 W
Noise:                     Null
Heat dissipation mode:     Natural heat dissipation
Power supply:              Rated 12 V DC (through the external AC/DC adapter)
Mounting:                  the desktop or on the wall
Operating environment:     0℃–40℃
Relative humidity:         5%–95%
Atmospheric pressure:      70–106 kPa
MTTR:                      30 minutes



GPON Interface Indices of the ZXHN F670



Connector type:               SC/APC
Number of PON:                1
Fiber type:                   Single-mode fiber
Wavelength: Transmitting end: 1310 nm (PON interface)
            Receiving end:    1490 nm (PON interface)
Compliance standard of the PON interface:   ITU-T 984.x
Receiving rate of the optical interface:    2.488 Gbps
Transmitting rate of the optical interface: 1.244 Gbps
Transmission wavelength range:              1290–1330 nm
Root-mean-square spectral width of the transmitting end: < 1 nm (spectral width: 20 dB)
Output optical power:         1–5 dBm
Optical power of the transmitter in output OFF status:   < -45 dBm
Extinction ratio:             > 10 dB
Receive range:                1480–1500nm
Receive sensitivity:          -28 dBm
Saturation optical power of the receiver:   -8 dBm
Optical link length:          20 km



Key Technical Indices of the ZXHN F670



Configurable VLAN ID range:        1–4094
Capacity of the MAC address table: 8K
Capacity of the multicast table:   1K
IGMP join delay:                   < 10 ms (single channel)
IGMP leave delay:                  < 10 ms (single channel)
Startup time:                      80s (default)
T-CONTs:                           8
GEM Ports:                         256
