S5700-28X-LI-AC
-
Model:
S5700-28X-LI-AC 02354215 Huawei Quidway S5700 Switch -
Detail:
24 Ethernet 10/100/1000 ports, 4 10 Gig SFP+, AC 110/220V -
Price:
$720.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
Overview (S5700-28X-LI-AC)
Huawei S5700-28X-LI-AC switch supports 24 x 10/100/1,000 Base-T Ethernet ports and 4 x 10 GE SFP+ ports.
Quick Specs

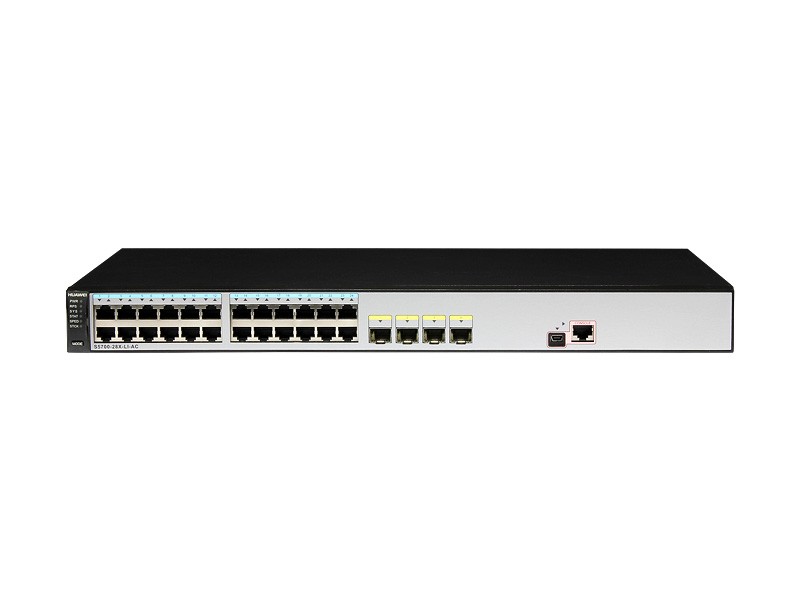

Figure 1 shows the appearance of Huawei S5700-28X-LI-AC switch.
Table 1 shows the Quick Specs.
|
Product Code |
S5700-28X-LI-AC |
|
Downlink Ports |
24 x Ethernet 10/100/1000 ports |
|
Uplink Ports |
4 x 10G SFP+ |
|
MAC Address |
16K |
|
VLAN |
4K |
|
Forwarding Performance |
96 Mpps |
|
Switching Capacity |
256 Gbit/s |
|
Stack |
Supported |
|
Stack connection mode |
Service port connection |
|
Power |
AC 110/220V & RPS1800 redundant power supply |
|
Heat Dissipation |
Forced air cooling by Built-in fans |
|
Installation mode |
Rack mounting, desk mounting, wall mounting |
|
300-mm deep cabinet |
Not Supported |
|
Dimensions (W x D x H) |
44.2 cm x 22 cm x 4.36 cm |
Product Details
Figure 2 shows the front panel of Huawei S5700-28X-LI-AC switch.
Note:
|
① |
Switch LEDs |
④ |
4 x 10G SFP+ Ethernet Optical Ports |
|
② |
Mode Button |
⑤ |
One Mini USB Port |
|
③ |
24 x 10/100/1000 BASE-T Ethernet Electrical Ports |
⑥ |
One RJ45 Console Port |
·4 x 10G SFP+ Ethernet Optical Ports supports GE, GE-CWDM, GE-DWDM, 10GE SFP+, 10GE-CWDM optical modules, and GE cooper modules.
·Huawei S5700-28X-LI-AC switch supports USB or RJ45 to console the device.
Figure 3 shows the back panel of Huawei S5700-28X-LI-AC switch.
|
① |
Ground Screw |
③ |
Jack for AC Terminal Locking Latch |
|
② |
RPS Socket |
④ |
AC Socket |
·Ground Screw is used with a ground cable.
·RPS Socket is used with an RPS cable which is not hot swappable.
·AC socket is used with an AC power cable.
·The AC terminal locking latch is not delivered with the switch.
