2.5G rate aperture index on OSN3500 device
Aug. 18, 2018
Share:
2.5G rate aperture index on OSN3500 device.
BOM coded veneer type corresponds to standard wavelength transmission distance (km) light-emitting power (dBm) acceptance sensitivity (dBm) minimum overload point (dBm)
03037372 SSN1SL16A01 I-16 1310nm 2 -10~-3 <-18 -3
03037374 SSN1SL16A02 S-16.1 1310nm 20 -5~0 <-18 0
03037375 SSN1SL16A03 L-16.1 1310nm 40 -2~+3 <-27 -9
03037376 SSN1SL16A04 L-16.2 1550nm 80 -2~+3 <-28 -9
03037377 SSN1SL1601 L-16.2 1550nm 80 -2~+3 <-31.5 -9
03037378 SSN1SL1602 L-16.2 (JE) 1550nm 100 +5~+7 <-31.5 -9
03037379 SSN1SL1603 V-16.2 (JE) 1550nm 140 -2~+3 <-31.5 -9
03037380 SSN1SL1604 U-16.2 (JE) 1550nm 170 -2~+3 <-31.5 -9
03037341 SSN2SL16A01 I-16 1310nm 0~2 -10~-3 <-18 -3
03037342 SSN2SL16A02 S-16.1 1310nm 2~15 -5~0 <-18 0
03037343 SSN2SL16A03 L-16.1 1310nm 15~40 -2~+3 <-27 -9
03037344 SSN2SL16A04 L-16.2 (ESFP) 1550nm 40~80 -2~+3 <-28 -9
03037443 SSN2SL1601 L-16.2 (OTRL) 1550nm 40~80 -2~+3 <-31.5 -9
03037338 SSN2SL1602 L-16.2 (JE) 1550nm 80~100 +5~+7 <-31.5 -9
03037339 SSN2SL1603 V-16.2 (JE) 1550nm 100~140 -2~+3 <-31.5 -9
03037340 SSN2SL1604 U-16.2 (JE) 1550nm 140~170 -2~+3 <-31.5 -9

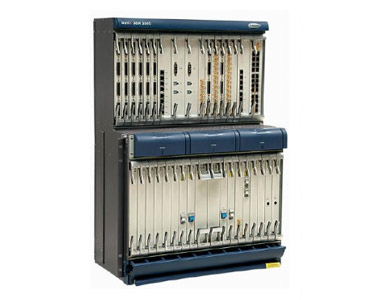

.jpg "OSN3500")
