EH1BS9703E00
-
Model:
EH1BS9703E00 Huawei S9700 Series Switch -
Detail:
S9703 Assembly Chassis, 3 Slots -
Price:
$1800.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
Overview (EH1BS9703E00)

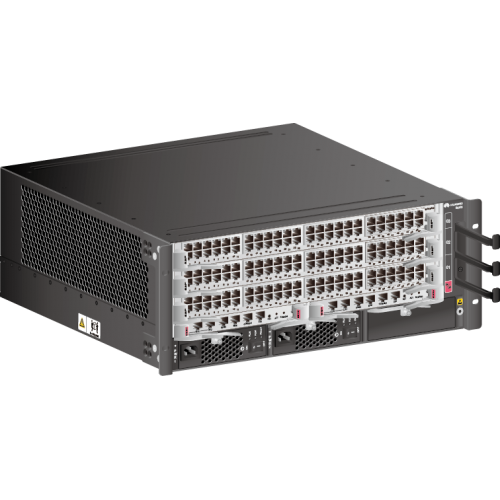

EH1BS9703E00 is the Huawei S9703 Assembly Chassis with 3 Slots. The S9700 series terabit routing switches are high-end switches designed for next-generation campus networks and data centers to implement service aggregation. EH1BS9703E00 is only a chassis without any modules. The service cards, MPUs, fan module, power supply modules must be ordered separately.
Quick Specs
Table 1 shows the Quick Specs of Huawei S9703 switch.
|
Product Code |
S9703 |
|
Switching Capacity |
2.88 Tbit/s or 5.76 Tbit/s |
|
Packet Forwarding Rate |
2,160 Mpps |
|
Service Slots |
3 |
|
IP Routing |
IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS IPv6 dynamic routing protocols, such as, RIPng, OSPFv3, ISISv6, and BGP4+ |
|
Dimensions (H x W x D) |
175 mm x 442 mm x 489 mm, 4U |
|
Chassis Weight (empty) |
11 kg |
|
Operating Voltage |
DC: –40V to –72V AC: 90V to 290V |
|
Equipment Power Supply Capability |
2,200W |
