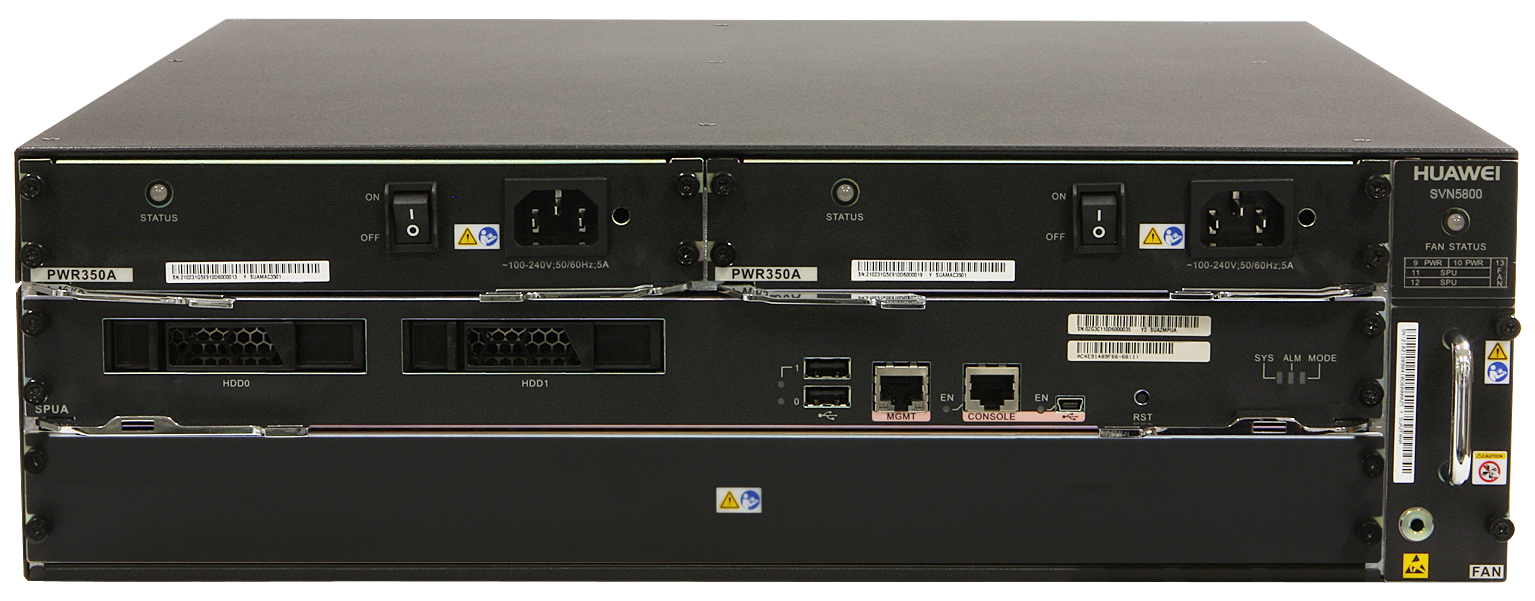

Huawei SVN5880-C Gateways

  • Model:

    Huawei SVN5880-C Gateways
  • Detail:

    Huawei SVN5800 Series Secure Access Gateways
  • Price:

    $4000.00

  • Condition:

    Brand New Sealed
  • Availability:

    IN STOCK

  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Overview
Huawei SVN5800 Series Secure Access Gateways



Product Specifications

Device specifications

Model SVN5830 SVN5850 SVN5860 SVN5880
Maximum number of concurrent SSL VPN users 6000 12,000 40,000 100,000
Maximum number of concurrent SSL VPN connections 15,000 30,000 150,000 150,000
IPSec VPN throughput 3Gbit/s 3Gbit/s 18Gbit/s 18Gbit/s
Concurrent IPSec VPN connections 4000 4,000 15,000 15,000
Maximum number of virtual gateways 256 256 512 512
I/O
Fixed ports 8GE+4SFP 4*10GE+16GE+8SFP
Expansion slots 2WSIC 5WSIC
Expansion card types WSIC: 2×10GE(SFP+)+8×GE(RJ45),8×GE(RJ45),8×GE(SFP),4×GE(RJ45)BYPASS
Device Specifications
Form Factor 1U 3U
Dimensions (H x W x D) mm 43.6 x 442 x 421 130.5 x 442 × 415
Weight (fully configured) 10KG 22KG
HDD Optional, 300 GB hot-swappable single hard disk Optional, 300 GB hot-swappable dual hard disks (RAID1)
Redundant power supply Optional Standard
AC power supply 100 V to 240 V
Maximum power 170W 350W 700W
Operating environment Temperature: 0°C to 45°C (without hard disk)/5°C to 40°C (with hard disk), humidity: 10% to 90%
Non-operating environment (storage environment) Temperature: –40ºC to 70ºC, humidity: 5% to 95% (non-condensing)
Functions
SSL VPN

Supports Web proxy, file sharing, port forwarding, network extension, and multimedia tunnel.

Supports access to resources, such as Web, Client/Server application program, and multimedia resources, in IPv4 or IPv6

VPN types SSL VPN, IPSec VPN, GRE VPN, L2TP VPN, MPLS VPN
User authentication

Supports authentication methods, such as local password (VPNDB), AD, RADIUS, LDAP, SecurID, X.509 digital certificate, USB key, SMS, device ID, and CAPTCHA authentication. Supports hierarchical authentication, single sign-on (SSO), and software keyboard.

Authentication control

Supports role-based, external group mapping, and dynamic authorization based on the security level of the terminals

Provides fine-grained access control based on application, IP address, port, and URL and is able to identify over 6000 application protocols

Supported operating systems Supports Android, Windows, Mac OS, iOS, Linux, Symbian, and BlackBerry OS.
Terminal security Supports terminal/host security check, cache cleaning, terminal ID binding, and DDoS attack defense at application and network layers.
Virtual gateway Supports multiple virtual gateways on one physical gateway to allow for service and network virtualization and independent authentication, authorization, services, and resources management
Agile feature Bandwidth management, intelligent ISP link selection
Network security Supports access control, NAT, and attack defense.
Network protocols Supports IPv4 and IPv6
Deployment and availability Supports transparent, routing, and hybrid deployment modes and active/active and active/standby high availability (HA)
