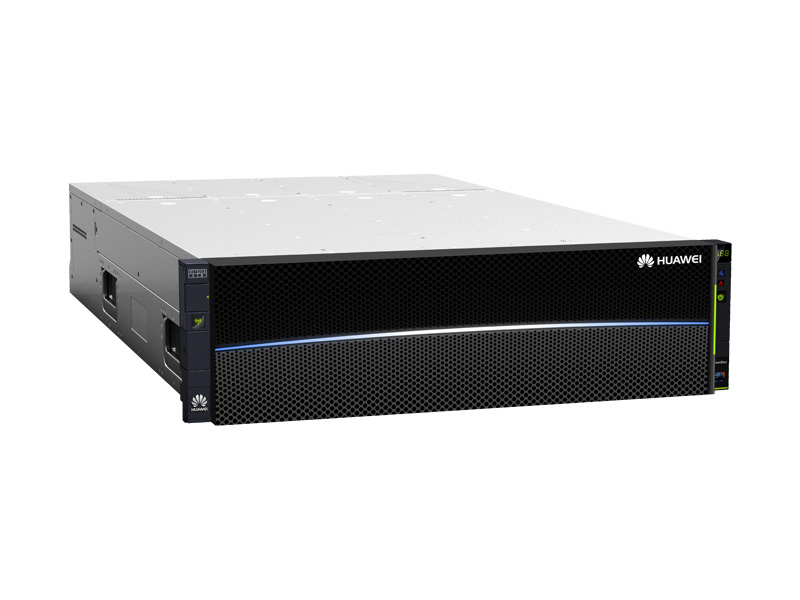

Huawei OceanStor 5800V3 storage systems

  • Model:

    Huawei OceanStor 5800V3 storage systems
  • Detail:

    Huawei OceanStor 5800V3 series storage systems
  • Price:

    $2000.00

  • Condition:

    Brand New Sealed
  • Availability:

    IN STOCK

  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Overview

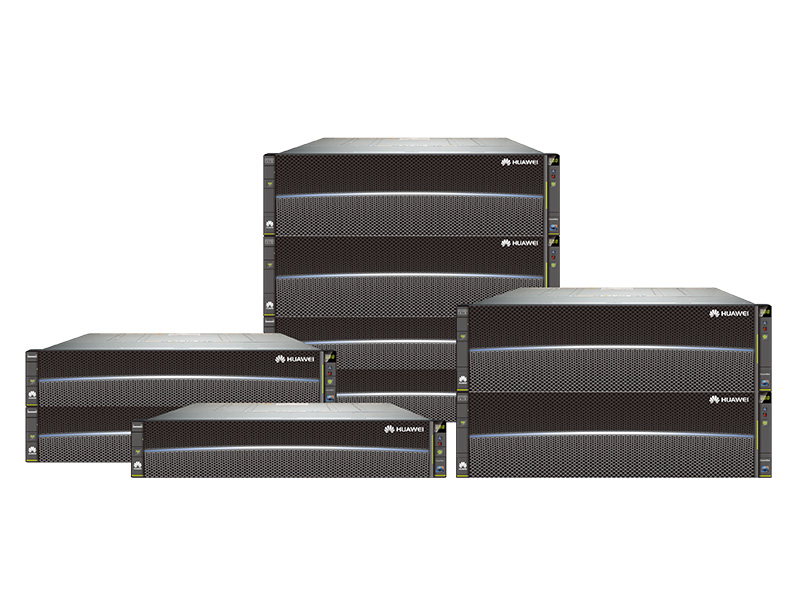

Huawei OceanStor 5800V3 series storage systems



Specifications

Specifications

5300 V3

5500 V3

5600 V3

5800 V3

System Cache (expanded with the number of controllers)

32 GB to 256 GB

48 GB to 512 GB

64 GB to 1,024 GB

128 GB to 2,048 GB

Max. Number of Controllers

8

8

8

8

Supported Storage Protocols

Fibre Channel, FCoE, iSCSI, InfiniBand, NFS, CIFS, HTTP, and FTP

Port Types

1 Gbit/s Ethernet, 10 Gbit/s FCoE, 10 Gbit/s TOE, 16 Gbit/s FC, and 56 Gbit/s InfiniBand, SAS 3.0 (back-end, 4 x 12 Gbit/s per port)

Max. Number of Disks Supported by Two Controllers

500

750

1,200

1,500

Max. Number of Front-end Ports per Controller

20

20

28

28

Max. Number of Hot Swappable I/O Modules per Controller

2

2

8

8

Disk Types and Supported RAID Levels

Disk types: SSD, SAS, and NL-SAS

RAID levels: 0, 1, 3, 5, 6, 10, or 50

Max. Raw Capacity (all-SSD, dual-controller configuration) 1,800 TB 2,700 TB 3,600 TB 5,400 TB
Gateway Mode Supported

Virtualization Features

  • Heterogeneous virtualization: Consolidates storage resources of mainstream products to manage and allocate in a flexible and unified manner
  • Block virtualization: Balanced data distribution, quick fault recovery
  • Computing virtualization: Support for virtual machines including VMware, XenServer, and Hyper-V; support for value-added features related to virtual environments, including VMware VAAI/VASA/SRM and Hyper-V; support for integration of vSphere and vCenter

Key Software Features



  • HyperSnap (snapshot), HyperCopy (LUN copy), HyperClone (clone), HyperMirror (volume mirror), and HyperReplication (remote replication), HyperMetro (active-active storage arrays), and HyperVault (integrated backup)
  • SmartQoS (intelligent QoS control), SmartPartition (intelligent partitioning), SmartCache (intelligent SSD caching), SmartTier (intelligent storage tiering), SmartThin (intelligent thin provisioning), SmartMotion (intelligent data migration), SmartMulti-Tenant (multi-tenant), SmartMigration (LUN migration), SmartCompression (online compression), SmartDedupe (online de-duplication), SmartQuota (quota management), HyperLock (WORM), and SmartErase (data destruction)
  • UltraPath (multipathing management), Cloud Service (remote maintenance and management), BCManager (disaster recovery management software), DeviceManager (manage a single device), and eSight (manage multiple cross-field devices)
