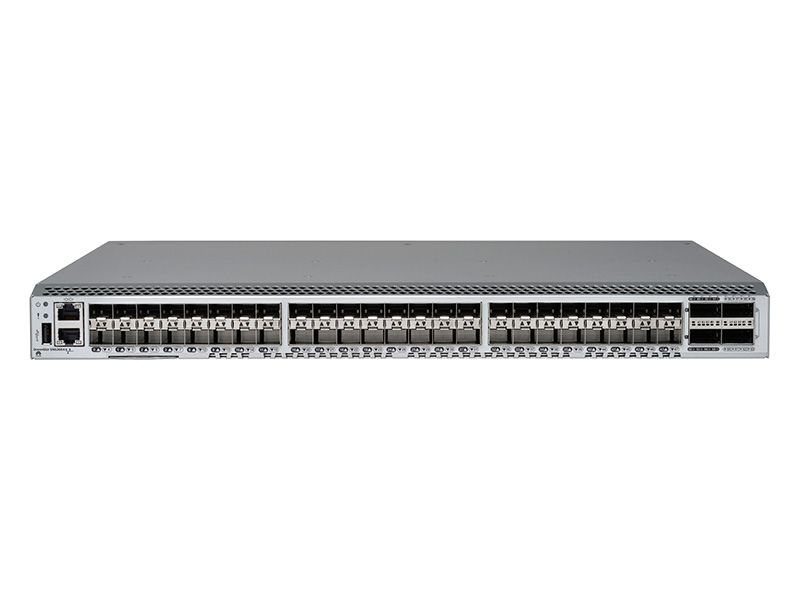

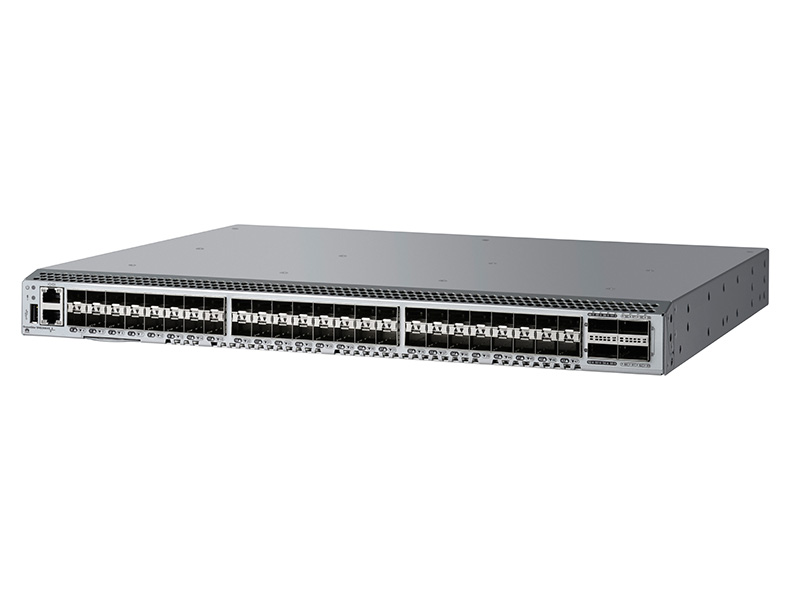

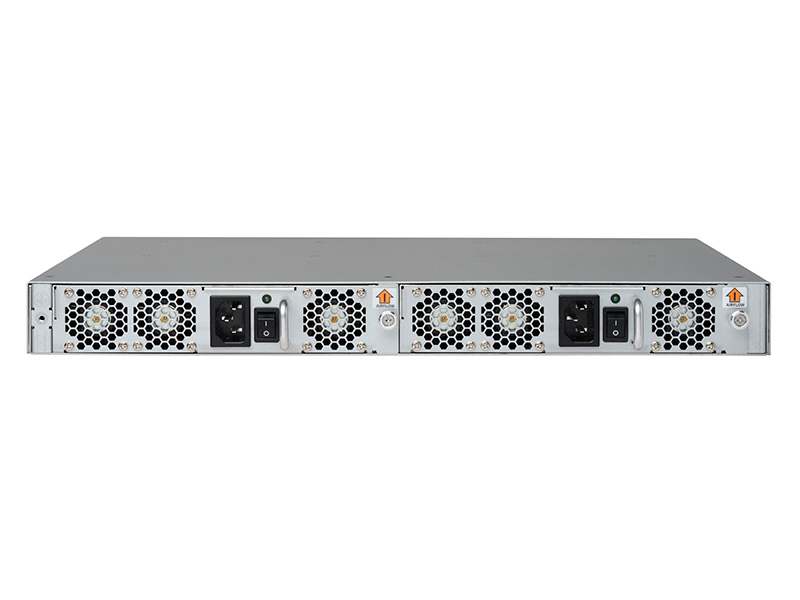

Huawei OceanStor SNS3664 Switches

  • Model:

    Huawei OceanStor SNS3664 Switches
  • Detail:

    High performance: Purpose-built for enterprise deployment. Power up from 16 Gbit/s to 32 Gbit/s Expand on demand: Provide “pay-as-you-grow” flexibility and Ports-on-Demand (PoD) capabilities for port expansion Intelligent and flexible: Provide affordable storage switches that redefine simplicity and flexibility. Deliver proactive, non-intrusive, real-time monitoring and alerting of storage IO health and performance with IO Insight
  • Price:

    $2000.00

  • Condition:

    Brand New Sealed
  • Availability:

    IN STOCK

  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Overview
High performance: Purpose-built for enterprise deployment. Power up from 16 Gbit/s to 32 Gbit/s Expand on demand: Provide “pay-as-you-grow” flexibility and Ports-on-Demand (PoD) capabilities for port expansion Intelligent and flexible: Provide affordable storage switches that redefine simplicity and flexibility. Deliver proactive, non-intrusive, real-time monitoring and alerting of storage IO health and performance with IO Insight



Specifications

Model

SNS2624

SNS3664

Number of Ports

Switch mode (default): 8-port, 16-port, and 24-port configurations (8-port increment through Ports on Demand [PoD] license)

Access Gateway default port mapping: 16 F Ports, 8 N Ports

Switch mode (default): Minimum of 24 ports and maximum of 64 ports. Port numbers above minimum are enabled through 12-port SFP+ increments via Ports on Demand (PoD) licenses and through one 4-port QSFP PoD

Access Gateway default port mapping: 40 SFP+ F Ports, 8 SFP+ N Ports

Port Types

F Port, E Port, M Port, and D Port (ClearLink Diagnostic Port) on 24 SFP+ ports

Access Gateway mode: F Port and NPIV-enabled N Port

D Port (ClearLink Diagnostic Port), E Port, EX Port, F Port, and AE Port; optional port-type control

Access Gateway mode: F Port and NPIV-enabled N Port

Performance

Auto-sensing of 4 Gbit/s, 8 Gbit/s, 16 Gbit/s, and 32 Gbit/s port speeds

Aggregate Bandwidth

768 Gbit/s end-to-end full duplex

2 Tbit/s

Maximum Fabric Latency

Latency for locally switched ports is ≤ 900 ns (including FEC)

Maximum Frame Size

2,112-byte payload

Frame Buffers

2,000 dynamically allocated

15,360 dynamically allocated

Classes of Service

Class 2, Class 3, and Class F (inter-switch frames)

USB

One USB port for system log file downloads or firmware upgrades

Scalability

Full-fabric architecture with a maximum of 239 switches
