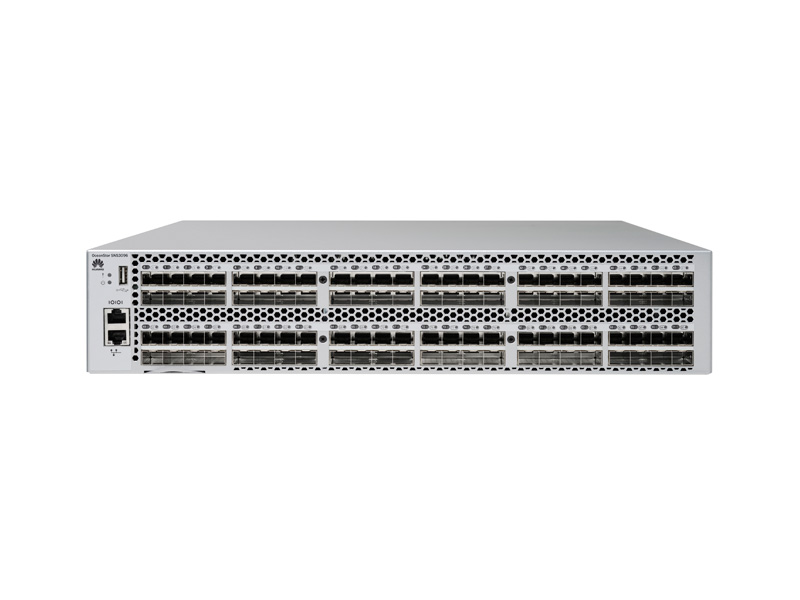

Huawei OceanStor SNS3096 switches

  • Model:

    Huawei OceanStor SNS3096 switches
  • Detail:

    OceanStor SNS3096, SNS5192, and SNS5384 are switches proven in network infrastructures dedicated to data centers. These easy-to-use switches providing storage requirements and unparalleled reliability, with up to 16 Gbit/s performance. Using enterprise-class Gen 5 Fiber Channel technology, the SNS3096, SNS5192, and SNS5384 unleash the full potential of high-density server virtualization, cloud architecture, and next-generation storage architecture.
  • Price:

    $3000.00

  • Condition:

    Brand New Sealed
  • Availability:

    IN STOCK

  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Overview
OceanStor SNS3096, SNS5192, and SNS5384 are switches proven in network infrastructures dedicated to data centers. These easy-to-use switches providing storage requirements and unparalleled reliability, with up to 16 Gbit/s performance. Using enterprise-class Gen 5 Fiber Channel technology, the SNS3096, SNS5192, and SNS5384 unleash the full potential of high-density server virtualization, cloud architecture, and next-generation storage architecture.



Specifications

Model

SNS3096

SNS5192

SNS5384

Number of Ports

A maximum of 96 ports in increments of 24; the number of general-purpose ports can be increased to 48, 72, or 96 using PoD licenses.

A maximum of 256 ports; a fully populated chassis includes four blades, and each blade supports 32, 48, or 64 ports.

A maximum of 512 ports; a fully populated chassis includes eight blades, and each blade supports 32, 48, or 64 ports.

Port Types

D_Port, E_Port, EX_Port, F_Port, and M_Port

Port Rates

Auto-sensing of 2, 4, 8, and 16 Gbit/s

Maximum Fabric Latency

Latency for locally switched ports is 700 ns

Aggregate Bandwidth

1,536 Gbit/s (96 ports x 16 Gbit/s data rate)

5.1 Tbit/s (256 ports x 16 Gbit/s data rate + 1.024 Tbit/s ICL bandwidth)

10.2 Tbit/s (512 ports x 16 Gbit/s data rate + 2.048 Tbit/s ICL bandwidth)

Media Types

SFP+, LC connector; 16 Gbit/s SWL, LWL, and ELWL

Maximum Frame Size

2,112-byte payload

Frame Buffers

8,192 frames dynamically allocated

Scalability

Full fabric architecture with a maximum of 239 switches
