Overview

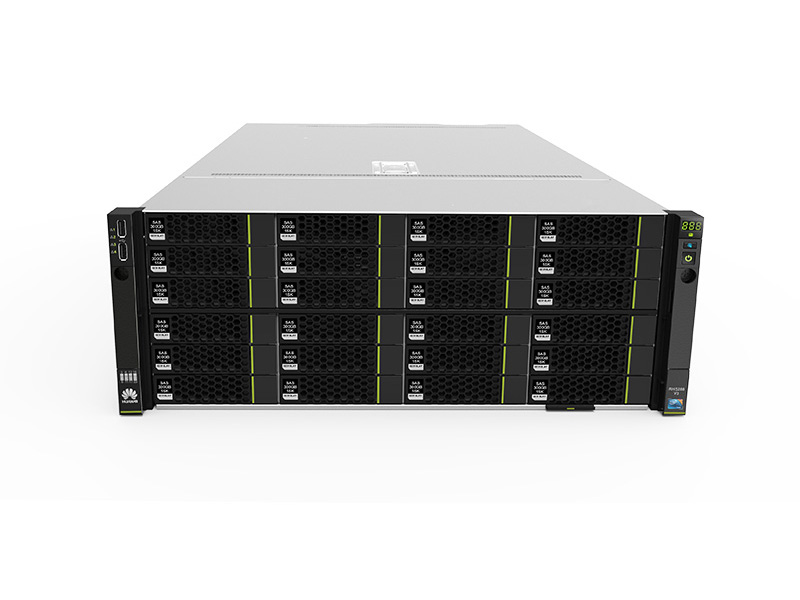

Meet tomorrow’s Big Data challenges today with Huawei’s FusionServer 5288 V3 rack server. Offering ultra-large storage capacity, flexible resource expansion, and high computing performance, this 4U, 2-socket rack server is the ideal choice for cold data and cloud storage, video surveillance, and Big Data applications.

Specifications

Processors	Intel® Xeon® E5-2600 v3/v4 series processors
Memory	16 DDR4 RDIMMs/LRDIMMs
Internal Storage	5288 V3 with 40 hard disks Front: 24 x 3.5-inch SAS/SATA HDDs Rear: 16 x 3.5-inch SAS/SATA HDDs 14 x 3.5-inch SAS/SATA HDDs + 2 x 2.5-inch SSDs or SAS/SATA HDDs 12 x 3.5-inch SAS/SATA HDDs + 4 x 2.5-inch SSDs or SAS/SATA HDDs 5288 V3 with 28 hard disks Front: 24 x 3.5-inch SAS/SATA HDDs Rear: 4 x 3.5-inch SAS/SATA HDDs 2 x 3.5-inch SAS/SATA HDDs + 2 x 2.5-inch SSDs or SAS/SATA HDDs 4 x 2.5-inch SSDs or SAS/SATA HDDs
RAID	RAID 0, 1, 10, 5, 50, 6, or 60 Configured with a supercapacitor for power-off protection for the cache (optional) RAID state transition, configuration memory, self-diagnosis, and web-based remote configuration
LOM Network Ports	Supported network configurations: 2 GE electrical ports, supporting Network Controller Sideband Interface (NC-SI), Wake on LAN (WoL), and pre-boot execution environment (PXE) 4 GE electrical ports, supporting NC-SI, WoL, and PXE 2 x 10 GE optical ports, supporting NC-SI and PXE 2 x 10 GE electrical ports, supporting NC-SI, WoL, and PXE 2 GE electrical ports and 2 x 10 GE optical ports, supporting NC-SI, WoL, and PXE
PCIe Expansion	Up to 6 PCIe 3.0 slots
Fan Modules	Hot-swappable fan modules in N+1 redundancy mode
Power Supply Units	2 hot-swappable PSUs in 1+1 redundancy mode
Management	Uses Huawei Hi1710 management chip and independent ports Supports standard management interfaces, such as SNMP and IPMI; provides GUI, remote KVM, virtual media, SOL, Predictive Failure Analysis (PFA), intelligent power supply, remote control, and hardware monitoring Supports Huawei eSight management software and integration with third-party management systems, such as VMware vCenter, Microsoft System Center, and Nagios
Operating Temperature	5ºC to 40ºC (41ºF to 104ºF), ASHRAE Class A3 compliant
