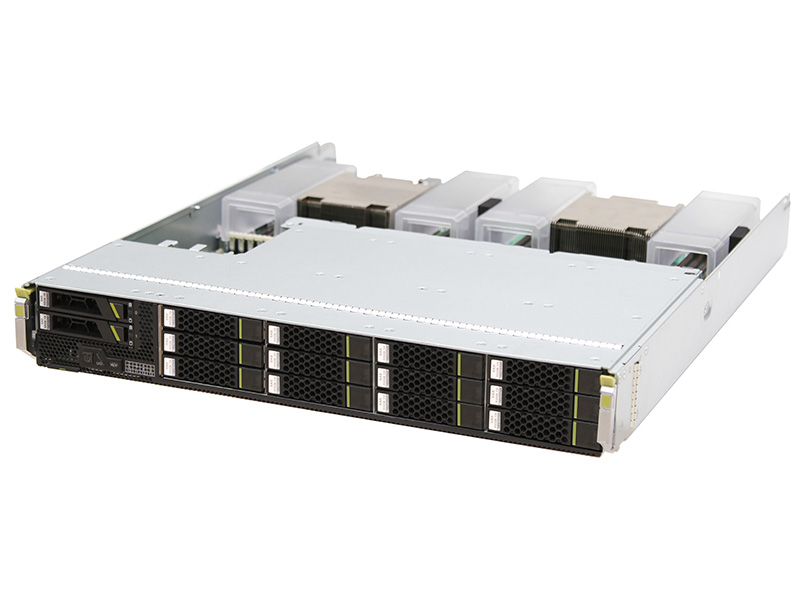

Huawei CH225 V3 All-Flash Compute Node

  • Model:

    Huawei CH225 V3 All-Flash Compute Node
  • Detail:

    The CH225 V3 provides superior computing performance and large storage capacity. It uses Intel® Xeon® E5-2600 v3/v4 series processors and supports up to 24 DIMM slots, 12 x 2.5-inch NVMe SSDs, and 2 x 2.5-inch hard disks. The CH225 V3 is suitable for scenarios that require high computing performance and large storage capacity, such as high-performance databases, real-time data analysis, and search.
  • Price:

    $2000.00

  • Condition:

    Brand New Sealed
  • Availability:

    IN STOCK

  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Overview
The CH225 V3 provides superior computing performance and large storage capacity. It uses Intel® Xeon® E5-2600 v3/v4 series processors and supports up to 24 DIMM slots, 12 x 2.5-inch NVMe SSDs, and 2 x 2.5-inch hard disks. The CH225 V3 is suitable for scenarios that require high computing performance and large storage capacity, such as high-performance databases, real-time data analysis, and search.

Ultra-large NVMe Flash memory capacity for the upcoming all-Flash era

  • Supports up to 12 x 2.5-inch NVMe SSDs and 2 x 2.5-inch SAS/SATA HDDs or SSDs, delivering up to 9,600,000 IOPS. Delivers industry-leading NVMe storage capacity per node
  • Supports the full series and all specifications of Intel® Xeon® E5-2600 v3/v4 processors. Provides 2 x 22-core processors to deliver superior computing capability
  • Complies with IPMI V2.0 and supports remote deployment and fault locating methods. Supports remote maintenance using SOL, KVM over IP, virtual CD-ROM drive, and WebUI to reduce O&M costs
  • Provides efficient and secure power consumption analysis and control capabilities. SSDs can be separately unloaded on the OS
  • Specifications

    Form Factor

    Full-width, 2-socket compute node

    Number of Processors

    1 or 2

    Processor Model

    Intel® Xeon® E5-2600 v3/v4 series

    Memory

    24 DDR4 DIMMs, providing a maximum memory capacity of 1.5 TB

    Local Storage

    12 x 2.5-in. NVMe SSDs and 2 x 2.5-in. SAS/SATA HDDs or SSDs

    Intra-Board Storage

    2 x Mini-SSDs (SATA DOM)

    2 x Micro-SD cards (RAID 1)

    1 x USB Flash drive (USB 3.0)

    RAID

    2 x 2.5-in. SAS/SATA HDDs or SSDs (RAID 0 or 1)

    PCIe Expansion

    4 x mezzanine cards (x16)

    Operating Temperature

    5ºC to 40ºC (41ºF to 104ºF)
