Huawei CH222 V3 Storage

Model:

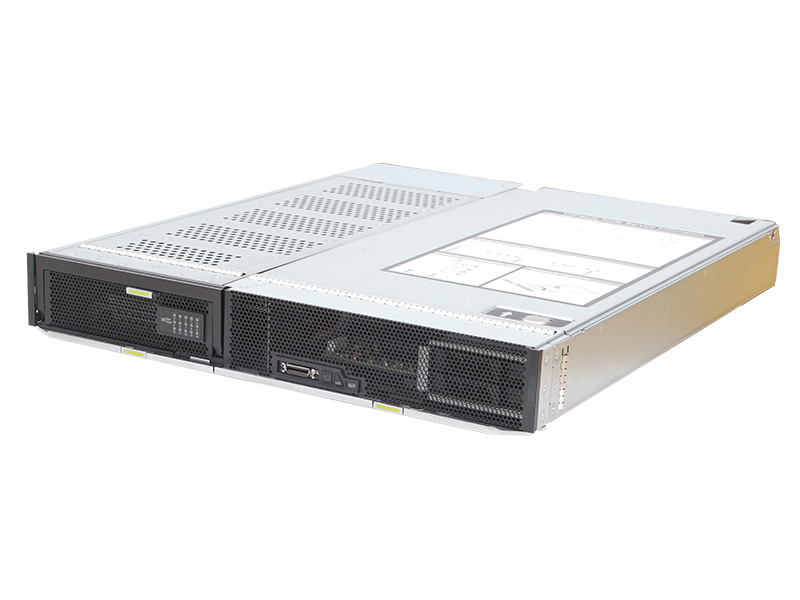

Huawei CH222 V3 Storage Expansion Compute Node

Detail:
This compute node can be used for Big Data analysis, server SAN, videos, searches, and the biological sciences — all processing applications that require large storage capacity and high computing performance. It forms part of the CH100 and CH200 families of compute nodes, which are fully compatible with Huawei’s E9000 Blade Server. This efficient compute node features dynamic energy-saving and power-capping technologies that manage and control power consumption with remarkably reduced low-load operating power. Carrier-class design, manufacturing, and components ensure high quality.

Price:

$2000.00

Buy Now Inquire Now

Free Technical Support
Product Quality Protection
On-time Shipment

+86 755 8215 3862
leo@uonel.com
ywx39894

Product Overview Reviews

Overview

This compute node can be used for Big Data analysis, server SAN, videos, searches, and the biological sciences — all processing applications that require large storage capacity and high computing performance. It forms part of the CH100 and CH200 families of compute nodes, which are fully compatible with Huawei’s E9000 Blade Server. This efficient compute node features dynamic energy-saving and power-capping technologies that manage and control power consumption with remarkably reduced low-load operating power. Carrier-class design, manufacturing, and components ensure high quality.

Super storage and computing capabilities for Big Data analysis, server SAN, videos, searches, and the biological sciences

Intel® Xeon® Processor E5-2600 v3/v4 series deliver up to two 22-core processors per node
Provides the highest cost-efficiency for large-memory applications and the highest storage capacity available on a single node
Reduces O&M costs with remote deployment and fault location technologies such as SOL, KVM over IP, virtual DVD-ROM drive, WebUI and IPMI 2.0 compliance
Nodes include efficient, secure power consumption analysis and control capabilities, including power-off mode and Intel® NM 3.0 compliance

Specifications

Form Factor	Full-width 2-socket compute node
Number of Processors	1 or 2
Processor Models	Intel® Xeon® E5-2600 v3/v4 series
Number of DIMMs	24 DDR4 DIMMs, providing a maximum memory capacity of 1.5 TB
Number of Hard Disks	15 x 2.5 in. SAS/SATA HDDs or SSDs
RAID Support	RAID 0, 1, 10, 5, 50, 6, and 60 with a 1 GB/2 GB RAID cache
PCIe Expansion	2 PCIe x 16 Mezz modules 1 standard PCIe x 8 full-height, half-length card
OS Support	Microsoft Windows Server 2008/2012 Red Hat Enterprise Linux SUSE Linux Enterprise Server Citrix XenServer VMware
Operating Temperature	5°C to 40°C
Dimensions	Height: 60.46 mm (2.38 in.) Width: 423 mm (16.65 in.) Depth: 537.2 mm (21.15 in.)
