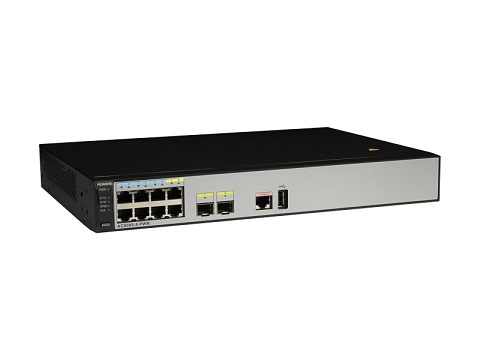

Huawei AC6005 Access Controller

  • Model:

    Huawei AC6005 Access Controller
  • Detail:

    AC6005 Access Controller Data Sheet
  • Price:

    $3120.00

  • Condition:

    Brand New Sealed
  • Availability:

    IN STOCK

  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Overview
AC6005 Access Controller Data Sheet

 he Huawei AC6005 Access Controller provides wired and wireless access services for campus and office networks in small- to medium-sized enterprises and branches. Flexible and robust Fit AP + AC architecture delivers 4 Gbit/s forwarding, supports up to 2,048 access users, and easily scales.

Two models are available: Model AC6005-8 features 6 x GE + 2 x GE Combo (copper or SFP optical) ports; Model AC 6005-8-PWR adds PoE support for eight ports (802.3af) or PoE+ (802.3at) for four ports.

Get a cost-effective mobility solution and simplify mobility management with the Huawei AC6005

  1. 1.MODE button resets indicator working modes
  2. 2.Six 10/100/1,000 BASE-T Ethernet electrical ports
  3. 3.Two combo ports
  4. 4.Console port
  5. 5.USB port

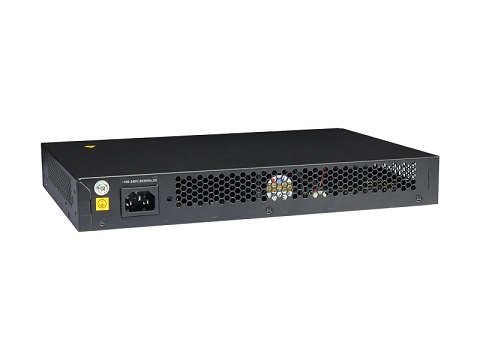

  6. 6.Ground point
  7. 7.AC power jack

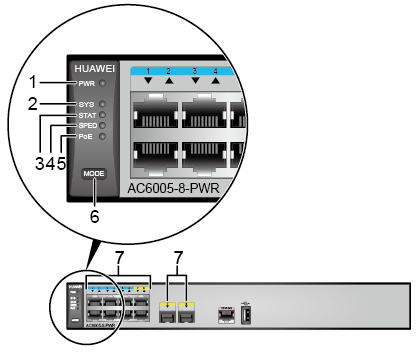

No. Indicator/Button Status Description
1 Power Supply Indicator: PWR Off Power supply not on
Steady green Power supply working properly

Steady orange

Note: Only the AC6005-8-PWR shows this status

PoE power supply faulty
2 System Status Indicator: SYS Off System not operating

Steady green

  • Fast blinking: System starting
  • Slow blinking: System running properly
Steady red System cannot start normally or there is an overheat or fan alarm
3 State Mode Indicator: STAT Off State mode not selected
Steady green Service port indicator works in default mode (STAT). In this mode, the indicator shows the port status
4 Speed Mode Indicator: SPED Off Speed mode not selected
Steady green Service port indicator shows port speed. After 45 seconds, service port indicator automatically returns to default mode (STAT)
5

PoE Mode Indicator: PoE

Note: Only on the AC6005-8-PWR model

Off PoE mode not selected
Steady green Service port indicator shows PoE status of each port. After 45 seconds, service port indicator automatically returns to default mode (STAT)
6 Mode Switching Button: MODE

--

AC6005-8-PWR

  • Press button once: SPED indicator turns green and service port indicators show port speed
  • Press button second time: PoE indicator turns green and service port indicators show PoE status of the ports
  • Press button third time: STAT indicator turns green

AC6005-8

  • Press button once: SPED indicator turns green and service port indicators show port speed
  • Press button second time: STAT indicator turns green. If you do not press the button within 45 seconds, STAT indicator turns green and SPED and PoE indicators go off (default mode)
7

Service Port Indicator

GE electrical ports: First indicator shows status of the bottom left port. The indicators correspond to the ports from bottom to top and from left to right

GE optical ports: Each optical port has a corresponding indicator above it

Service port indications vary depending on mode. See the following table for details
