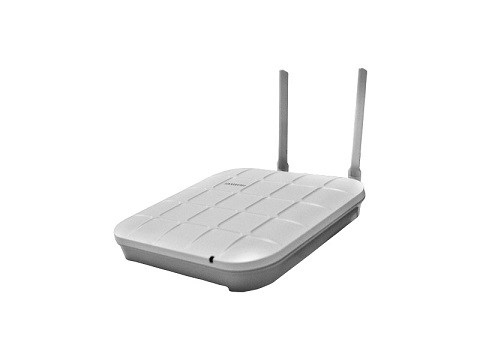

Huawei AP4130DN Access Points
-
Model:
Huawei AP4130DN Access Points -
Detail:
High-speed and reliable wireless access services: 1.167 Gbit/s, 2 x 2 MIMO, 2.4 GHz and 5 GHz frequency bands -
Price:
$330.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
Share:
Overview
High-speed and reliable wireless access services: 1.167 Gbit/s, 2 x 2 MIMO, 2.4 GHz and 5 GHz frequency bands
Specifications
|
Specifications
|
AP4030DN
|
AP4130DN
|
|
Dimensions (H x W x D)
|
180 mm x 180 mm x 39.5 mm
|
180 mm x 180 mm x 39.5 mm
|
|
Power Input
|
12V DC ± 10%
PoE: -48V DC (in compliance with IEEE 802.3af/at)
|
12V DC ± 10%
PoE: -48V DC (in compliance with IEEE 802.3af/at)
|
|
Maximum Power Consumption
|
10.2W
|
10.2W
|
|
Operating Temperature
|
-10°C to 50°C
|
-10°C to 50°C
|
|
Antenna Type/Antenna Gain
|
Built-in antenna/2.4 GHz: 4 dBi; 5 GHz: 6 dBi
|
Removable RP-SMA antenna/2.4 GHz: 2.5 dBi; 5 GHz: 4 dBi
|
|
Maximum Number of Users
|
≤ 256
|
≤ 256
|
|
Maximum Transmit Power
|
23 dBm (combined power)
|
23 dBm (combined power)
|
|
MIMO: Spatial Streams
|
2 x 2:2
|
2 x 2:2
|
|
Wireless Protocols
|
802.11a/b/g/n/ac
|
802.11a/b/g/n/ac
|
|
Highest Rate
|
1.167 Gbit/s
|
1.167 Gbit/s
|
