ET1BS12708S0

  • Model:

    ET1BS12708S0 S12700 Series Switch
  • Detail:

    S12708 Assembly Chassis, 8 slots
  • Price:

    $3500.00

  • Condition:

    Brand New Sealed
  • Availability:

    IN STOCK

  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Overview
S12708 Assembly Chassis, 8 slots



Overview (ET1BS12708S0)

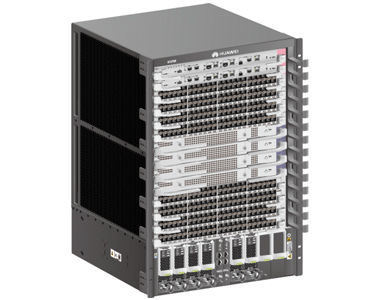

ET1BS12708S0 is the Huawei S12708 Switch assembly chassis, including 8 slots.

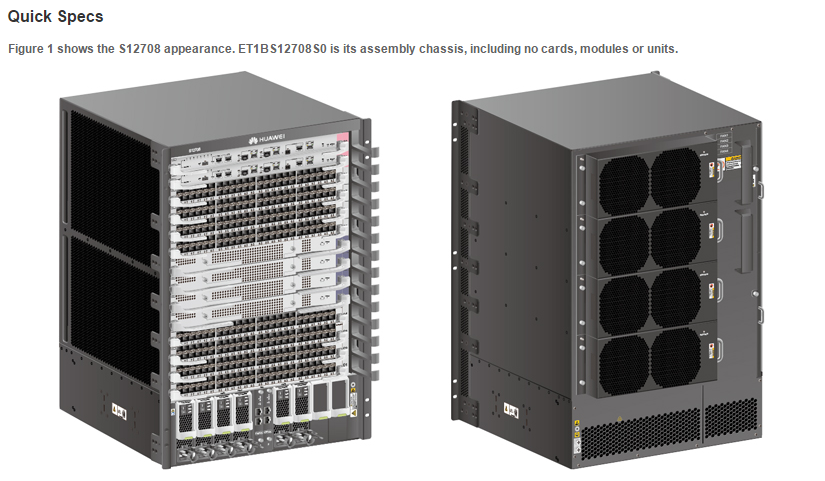

Table 1 shows the Quick Specs.





Product Code

ET1BS12708S0

Packet Forwarding Rates

6,240 Mpps; 9,120 Mpps(With Necessary Plug-ins)

Switching Capacity

12.32 Tbit/s; 32.16 Tbit/s(With Necessary Plug-ins)

MPU Slots

2

SFU Slots

4

Service Card Slots

8

Energy Saving

Energy Efficient Ethernet (802.3az)

Redundancy Design

MPUs, SFUs, power supplies, and fan modules

Maximum Power Consumption of the Entire Equipment

≤ 4,400W

Dimensions (W x D x H)

With cable management frames: 442 mm x 585 mm x 663.95 mm (17.4 in. x 23.0 in. x 26.1 in. (15 U))

Without cable management frames: 442 mm x 489 mm x 663.95 mm (17.4 in. x 19.3 in. x 26.1 in. (15 U))

Weight

42 kg
