Home / Product / Transmission Network / Huawei OTN / OSN 6800 / CW6043800 OptiX OSN 6800

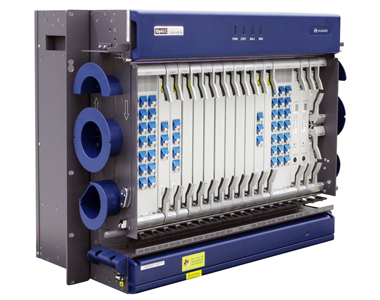

CW6043800 OptiX OSN 6800

  • Model:

    OSN 6800

  • Detail:

    Huawei OptiX OSN 6800

  • Price:

    Request For Quotation

  • Condition:

    Brand New Sealed

  • Availability:

    IN STOCK

  • Quantity:

Buy Now Inquire Now
  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Product Overview Reviews
Overview
Huawei OptiX OSN 6800



OptiX OSN 6800A V100R010C10 Feature Updates Updates Overview



This topic describes the hardware and software updates in OptiX OSN 6800A V100R010C10 compared with OptiX OSN 6800A V100R010C00.

Feature Updates

Table 1 Enhanced Features
Feature Update Reason for the Update Information Update
Optical Line Protection

The product functions are enhanced.

Compared with 1+1 optical line protection that splits optical signals into two channels, 1:1 optical line protection causes smaller insertion losses because it uses auxiliary light sources to generate optical signals.

 Optical Line Protection: 1:1 optical line protection is added.
Flexible allocation and grooming of n x 50 GHz bandwidth are newly supported. TN12WSMD9, TN13TM20, TN13WSMD4, TN16WSM9, and TN16WSD9 boards newly support grooming of n x 50 GHz bandwidth, satisfying the flexible grooming requirement of the beyond 100G service. Flexible ROADM Technology: The description about the 50 GHz slice spacing principle is added.
Fiber Doctor System
  • Fiber quality monitoring can be started in 1:1 optical line protection scenario.
  • Fiber quality monitoring can be started in alarm-triggered mode or periodically mode.
  • The result of fiber quality detection can be export.
  • Introduction: 1:1 optical line protection scenario is added.
  • Triggering Fiber Quality Monitoring by Alarm and Periodically Performing Fiber Quality Monitoring are added.
  • Viewing and Analyzing Detection Results: The method of exporting detection result is added.

Hardware Updates

Table 2 New hardware
Hardware Update Reason for the Update Information Update
TN97MD2 This board is a multiplexer and demultiplexer board that supports extended C band. MD2
TN97M48V As a type of optical multiplexing unit, the TN97M48V board multiplexes a maximum of 48 extended C channels of signals into one channel of signals that comply with ITU-T Recommendations, and adjusts the input optical power of each channel. M48V
TN97D48 The TN97D48 is a type of optical demultiplexing unit. The TN97D48 implements the demultiplexing of one optical signal into a maximum of 48 ITU-T Recommendation-compliant WDM signals. D48
TN97FIU As an optical multiplexing and demultiplexing unit, this board multiplexes and demultiplexes extended C-band signals transmitted along the main optical path and optical supervisory channel.In addition, this board supports high power input when works with the TN51HBA board. FIU
TN97ITL As a type of optical multiplexing and demultiplexing unit, the TN97ITL board implements multiplexing/demultiplexing between the extended C-band optical signals at a channel spacing of 100 GHz and the signals at a channel spacing of 50 GHz. ITL
TN97TD20 The TN97TD20 board is a demultiplexer board and applies to SLTE sites. It is used to broadcast a multi-wavelength signal that contains 20 coherent optical signals over different wavelengths. It is intended for colorless applications because coherent OTU or line board supports wavelength selection. TD20
TN97TM20 The TN97TM20 board is a multiplexer board and is intended for colorless applications. It is used to add 20 coherent optical signals over different wavelengths and multiplex these signals into one multi-wavelength signal. TM20
TN97ASE The TN97ASE board is a type of amplified spontaneous emission unit. The TN97ASE board is used to generate dummy light in a submarine system. ASE
TN97OBU2 Amplifies the input optical signals in extended C band with the wavelength range of 1528.8 nm to 1567.6 nm. OBU2
TN97OAU2 Amplifies the input optical signals in Extened C band with the wavelength range of 1528.8 nm to 1567.6 nm. OAU2
TN97RPC The TN97RPC board is an OA board. It can produce multi-wavelength backward pump light with high power and achieve the distributed in-service amplification of signals within the entire bandwidth of the extended C-band while producing very little noise. The TN97RPC board must be used with the EDFA. TN97RPC
TN12RAU1 The TN12RAU1 boards of types 06 and 06E have the same functions and features but 06E newly supports the RFM port that can be connected to an OTDR meter. RAU1
TN12RAU2 The TN12RAU2 boards of types 01 and 01E have the same functions and features but 01E newly supports the RFM port that can be connected to an OTDR meter. RAU2
TN15TM20 The TN15TM20 board is a multiplexer board and is intended for colorless applications. It applies to ROADM sites and is used to add 20 coherent optical signals over different wavelengths and multiplex these signals into one multi-wavelength signal. TM20
TN11OLSP The board supports single mode and is applicable to common optical power scenarios. It supports 1:1 optical transmission section (OTS) optical line protection. It can also work together with the FIU board on an optical regeneration site. OLSP
TN11OLSPA/TN11OLSPB

As optical protection boards, OLSPA/OLSPB implements 1:1 optical line protection and applies to IEEE 1588v2 scenarios.

 OLSPA/OLSPB
TN51RPC The TN51RPC board is an OA board. It can produce multi-wavelength forward pump light with high power and achieve the distributed in-service amplification of signals within the entire bandwidth of the C-band and extended C-band while producing very little noise. The TN51RPC board must be used with the EDFA. TN51RPC
TN51ROP The TN51ROP board generates 1480 nm pump light, and uses fibers to transmit the pump light to RGU for optical signal amplification. ROP
TN51HBA As a type of optical amplifier unit, the TN51HBA board provides a high gain and therefore is generally used in long-hop applications. It is configured at the transmit end. HBA

Alarm Updates

Table 3 New Alarms and Performance
Name Description Reference Link
POWER-SAMPLE-DIFF The current optical power of the protection channel is inconsistent with the sampling optical power. POWER-SAMPLE-DIFF
SUBRACK-AMOUNT-EXCEED-CAPACITY Number of slave subracks exceeding threshold. SUBRACK-AMOUNT-EXCEED-CAPACITY
ONE-PUMP-WORK Single pump card working alarm. ONE-PUMP-WORK
PUMP-LINK-ULLAGE-HIGH Pump laser connection insertion loss alarm. PUMP-LINK-ULLAGE-HIGH
PUMP-MIS-MATCH Pump card mismatch. PUMP-MIS-MATCH
PUMP-OFFLINE Pump card offline. PUMP-OFFLINE
