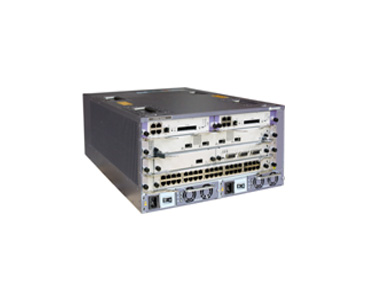

CX600-X3

Dimensions (H x W x D)

DC chassis: 175 mm x 442 mm x 650 mm (6.89 in. x 17.40 in. x 25.59 in.) (chassis main body dimensions)175 mm x 442 mm x 750 mm (6.89 in. x 17.40 in. x 29.53 in.) (chassis dimensions including the chassis's front and rear assembly and cable racks)

AC chassis: 220 mm x 442 mm x 650 mm (8.66 in. x 17.40 in. x 25.59 in.) (chassis main body dimensions)220 mm x 442 mm x 750 mm (8.66 in. x 17.40 in. x 29.53 in.) (chassis dimensions including the chassis's front and rear assembly and cable racks)

Installation position

N68E cabinet or a standard 19-inch cabinet.

Typical power consumption

DC chassis: 920W

AC chassis: 1070W

Heat dissipation

DC chassis: 2982.1 BTU/hour

AC chassis: 3468.3 BTU/hour

Weight

Empty chassis

DC chassis: 12 kg (26.46 lb)

AC chassis: 20 kg (44.10 lb)

Full configuration (maximal)

DC chassis: 42kg (92.61 lb)

AC chassis: 52 kg (114.66 lb)

DC input voltage

Rated voltage

-48 V DC / —60 V DC

Maximum voltage range

-38.4 V DC to -72 V DC

AC input voltage

Rated voltage

200 V AC to 240 V AC (220V)

Maximum voltage range

180 V AC to 264 V AC

System reliability

MTBF (year)

27.44

MTTR (hour)

0.5

Ambient temperature

Long-term

0°C to 45°C (32°F to 113°F)

Short-term

-5°C to 55°C (23°F to 131°F)

Storage temperature

-40°C to 70°C (-40°F to 158°F)

Relative humidity

Long-term

5% RH to 85% RH, no coagulation

Short-term

5% RH to 95% RH, no coagulation

Storage humidity

5% RH to 95% RH, no coagulation

Long-term altitude

≤ 4000 m (13123.2 ft). If the altitude is between 1800 meters (5905.44 ft) and 4000 meters, the maximum operating temperature of the device must decrease by 1°C for every 220 meters (721.776 ft) increase in altitude.

Storage altitude

Lower than 5000 m (16404 ft)
