S5700-24TP-SI-AC
-
Model:
S5700-24TP-SI-AC 02352360 Huawei Quidway S5700 Switch -
Detail:
20 10/100/1000Base-T and 4 GE Combo, AC 110/220V -
Price:
$650.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
Overview (S5700-24TP-SI-AC)
Huawei S5700-SI series are gigabit Layer 3 Ethernet switches. The S5700-24TP-SI-AC supports 20 10/100/1000BASE-T ports and 4 combo ports (10/100/1000BASE-T (PoE+) + 100/1000BASE-X).
Quick Specs

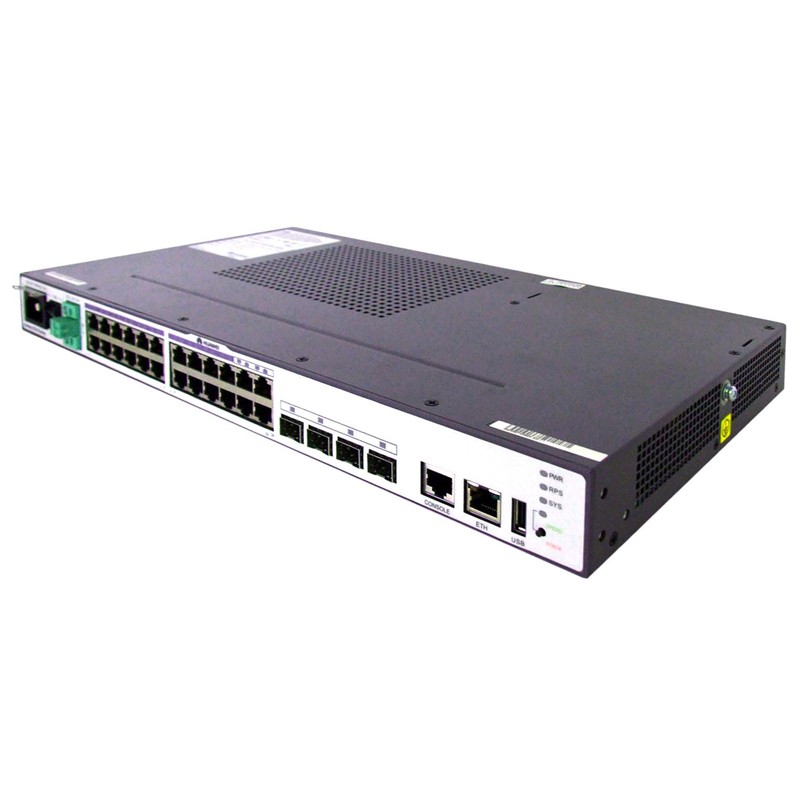

Figure 1 shows the appearance of Huawei S5700-24TP-SI-AC switch.
Table 1 shows the Quick Specs.
|
Product Code |
S5700-24TP-SI-AC |
|
Ports |
24 Ethernet 10/100/1,000 ports, 4 of which are dual-purpose 10/100/1,000 or SFP ports |
|
Forwarding Performance |
36 Mpps |
|
Switching Capacity |
256 Gbit/s |
|
Stack |
Supported by stack card |
|
Stack Ports |
Two stack ports available on each stack card |
|
Power |
AC 110/220V |
|
Heat Dissipation |
Built-in fans for intelligent air cooling |
|
Memory (RAM) |
256 MB |
|
Flash |
32 MB |
|
Dimensions (W x D x H) |
442.0 mm x 220.0 mm x 43.6 mm |
|
Weight |
3.9 Kg |
Product Details
Figure 2 shows the front panel of Huawei S5700-24TP-SI-AC switch.
Note:
|
① |
AC socket |
⑤ |
Four combo ports (10/100/1000BASE-T + 100/1000BASE-X) |
|
② |
Power switch |
⑥ |
One console port |
|
③ |
Backup power socket |
⑦ |
ETH management port |
|
④ |
20 × 10/100/1000BASE-T ports |
⑧ |
USB port |
Figure 3 shows the back panel of Huawei S5700-24TP-SI-AC switch.
Note:
|
① |
ESD jack |
|
② |
Rear card slot |
