RTN 900
-
Model:
RTN 900 -
Detail:
Huawei optix RTN900 Outdoor IP microwave transmission -
Price:
Request For Quotation
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894

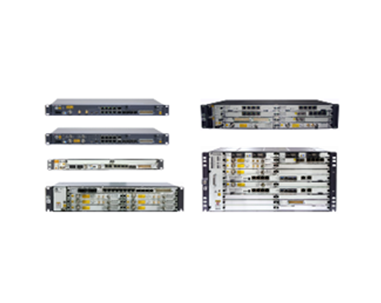

Huawei's RTN 900 series is the industry's first TDM/Hybrid/Packet/Routing integrated IP microwave product. It can meet voice transmission requirements in the 2G era, voice and data transmission requirements in the 3G era, as well as broadband data transmission requirements in infrastructure.
OptiX RTN 905
The OptiX RTN 905 is access-layer microwave equipment. It can independently construct a network or jointly construct a network with the OptiX RTN 910/950/950A/980. Figure 1-1 shows the microwave transmission solution provided by the OptiX RTN 905.
Components
The OptiX RTN 905 adopts a split structure. The system consists of the IDU 905 and the ODU. Each ODU is connected to the IDU 905 through an IF cable.
IDU 905:
The IDU 905 is the indoor unit for an OptiX RTN 905 system. It receives and multiplexes services, performs service processing and IF processing, and provides the system control and communications function.
The OptiX RTN 905 V100R006C00 supports three types of IDUs: IDU 905 1A, IDU 905 2A, and IDU 905 1C, and therefore can form the OptiX RTN 905 1A , 2A, and 1C systems..
Features of the IDU 905 :
| Item | Description | ||
|---|---|---|---|
| Type | IDU 905 1A | IDU 905 2A | IDU 905 1C |
| Chassis height | 1U | ||
| Extended sub card | Not supported | An extended sub-slot is reserved. | |
| Service interface |
|
|
|
| Radio type | Integrated IP radio (E1 + Ethernet) |
|
|
| Highest modulation | 1024QAM | ||
| Number of IF/RF channels | 1 | 2 | 1 |
| RF configuration mode | 1+0 |
|
|
